YUCHAI Diesel Engine

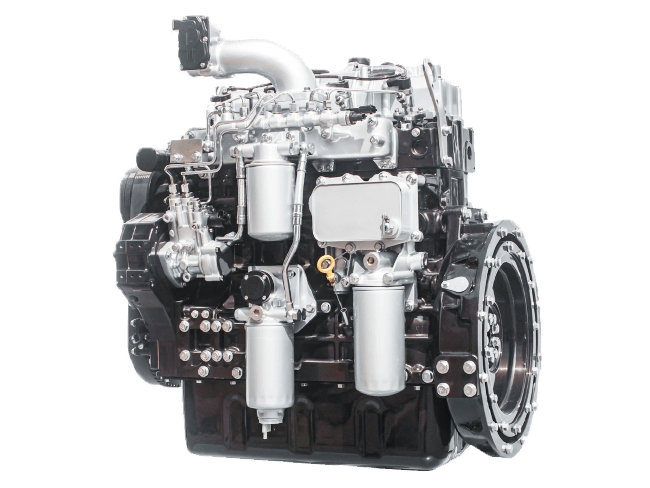

China Reliable Yuchai Diesel Engine Construction and Industrial Use Ycf36 Series Yuchai

China Reliable Yuchai Diesel Engine Construction and Industrial Use Ycf36 Series Yuchai (YCF36 series Yuchai Diesel Engine)

Customization
Available
After-sales Service
Schedule
Warranty
Schedule

Product Detail

Basic Info.

Model NO.YCF36 series Yuchai Diesel EngineIgnition ModeElectric Ignition
SpeedHigh SpeedCooling CylinderWater-Cooled
Intake Pressure ImpulseSuperchargedPiston MovementReciprocating
FuelDieselNumber of StrokesFour-Stroke
Cylinder Arrangement FormLNumber of Cylinders4-Cylinder
TypeCombustion EngineExhaust AftertreatmentSCR
Displacement (L)3.6Bore × Stroke98*120
Air Intake MethodCharge Inter-CoolingTransport PackageExport-Specific Packaging
SpecificationOil change cycle 500HTrademarkYUCHAI
OriginChinaHS Code8408209090

Product Description

YCF36,Diesel Engine,65~160Ps Power Coverage,Adapted Models:5~6kg/s Rice harvesters, 80~120Ps Tractors, Peanut harvesters, etc. Almighty

Technical Parameters
Models YCF3675-T480 YCF36130-T480 YCF36150-T400
Number of cylinders, Bore×Stroke(mm) 4-98×120 4-98×120 4-98×120
Displacement(L) 3.6 3.6 3.6
Number of valves per cylinder 2 2 2
Air intake method Turbocharged charge inter-cooling charge inter-cooling
Rated power/speed(kW,r/min) 55.8/2200 96/2400 110/2400
Maximum torque / speed(N·m,r/min) 330/1600 480/1600 500/1600
Low speed torque/speed(N·m,r/min) ≥300/1000 ≥400/1000 ≥400/1000
Emission level GB20891-2014 Phase IV Emission Standards
Emission technology route CR+EGR+DOC+DPF CR+EGR+DOC+DPF CR+DOC+DPF+SCR
External characteristic minimum fuel consumption(g/kW·h) ≤205 ≤200 ≤195
Oil change cycle 500h 500h 500h

Founded in 1951, Guangxi Yuchai Machinery Group Co., Ltd., affectionately known as Yuchai Group, radiates as a luminary of innovation and engineering splendor. Situated in Yulin, Guangxi Zhuang Autonomous Region, this vibrant enterprise excels in investment and capital ventures, cementing its stature as a powerful state-owned entity. With a formidable asset worth CNY 41.7 billion and a vast workforce of around 16,000, Yuchai Group commands over 30 subsidiaries, each fostering a legacy of excellence. Renowned as a leading manufacturer of internal combustion engines, its extensive product range and industrial reach span across pivotal provinces like Guangxi, Guangdong, Jiangsu, Anhui, Shandong, Hubei, Sichuan, Chongqing, and Liaoning. With annual sales consistently exceeding CNY 40 billion, Yuchai Group stands as a towering force in the engine sales domain.



Yuchai Group ranks among the elite, securing a distinguished position within the top 500 Chinese enterprises and top 500 Chinese manufacturers, clinching an impressive 10th position among the prestigious Top 100 China Machinery Industry leaders, while proudly holding the 100th spot among China's 500 most esteemed brands, with a remarkable brand valuation surpassing CNY 57.2 billion. As a beacon of corporate culture and moral leadership, Yuchai Group has achieved numerous accolades, including the esteemed "President's Quality Award of Guangxi Zhuang Autonomous Region" and the "Nomination for China Quality Award." Beyond these honors, Yuchai Group exemplifies a steadfast commitment to sustainability, consistently publishing an annual sustainable development report for 13 consecutive years.



With an unwavering dedication to systemic, technological, and managerial innovations, Yuchai Group enhances its global technology integration, strengthening core competitiveness and driving advancements in social capital. The strategic focus is on three essential sectors: "Engine Manufacturing and Industry Chain," "Logistics and Supply Chain Service," and "New Energy Industry (Electric Power and Automobile) and Related Services." As a trailblazer in engine research, Yuchai Group has engineered engines that not only meet but surpass China's IV, V, and VI emission standards, positioning itself at the vanguard of the industry's green revolution by delivering cost-effective and sustainable power solutions.

As Yuchai Group looks to the future, it strives to enhance collaboration both domestically and globally, refining industrial structures and tapping into the vigor of Guangxi's machinery industry rejuvenation. This forward-thinking strategy aims to guide the company towards secure, prosperous, and sustainable growth, enhancing core competitiveness and cultivating an industrial powerhouse valued at CNY 100 billion. The ultimate aspiration is to establish a formidable global presence, realizing its bold vision of becoming a "Customer-trusted Brand, World-class Enterprise."
