Auxiliary Marine Engine(50HZ)
Review product information, specifications and application details, supported by HYLICO POWER product matching and export coordination.
Auxiliary Marine Engine(50HZ)

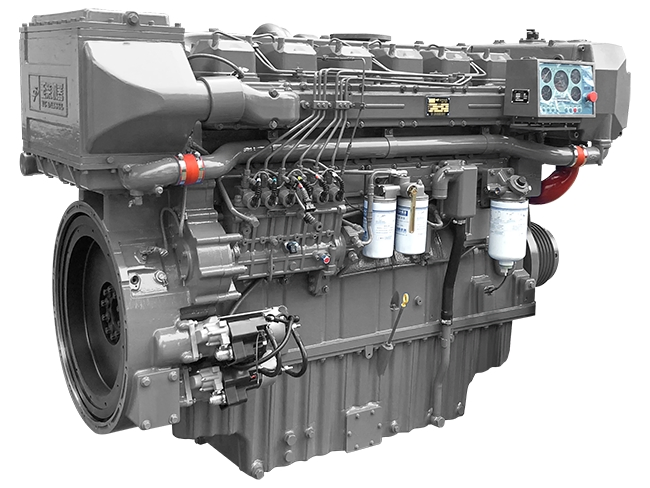

Product Description YC6TD.Marine engine.441kW~588kWPower range This high-performance marine engine is the ultimate choice for a variety of marine propulsion systems. Whether navigating the serene inland waterways or braving the vast offshor
| Technical parameters | |||||
| Item | YC6TD Series marine diesel engine | ||||
| Model | YC6TD800L-C20 | YC6TD760L-C20 | YC6TD650L-C20 | YC6TD600L-C20 | YC6TD475L-C20 |
| Number of cylinders - bore × stroke (mm) | 6-152×180 | ||||
| Displacement (L) | 19.59 | ||||
| Number of valves per cylinder | 4 | ||||
| Induction system | Turbocharged & intercooled | ||||
| Rated power/speed (kW(Ps)/r/min) | 588(800)/1800 | 559(760)/1800 | 478(650)/1800 | 441(600)/1500 | 348(475)/1800 |
| Overload power/speed (kW(Ps)/r/min) | 646.8(880)/1858 | 614.9(835)/1858 | 525.8(715)/1858 | 485.1(660)/1548 | 382.8(520)/1858 |
| Min. specific fuel consumption of external characteristics (g/kW·h) | ≤195 | ||||
| Certificates | ZC,CCS,EIAPP, China II | ||||
| Diemension (L×W×H) (mm) | 1986×1319×1696 | ||||
| Dry weight (kg) | 2200 | ||||
Service support
Share the model, vessel type, required power or operating conditions. HYLICO POWER will help confirm a practical configuration and the next quotation step.
Product inquiry
For faster matching, include the application, required power, quantity, destination and expected delivery time.
Auxiliary Marine Engine(50HZ)
Product Description YC6K Marine engine.309kW~412kWPower range This remarkable engine is extensively applied in various maritime settings, serving as both a primary and secondary engine for commercial vessels, as well as an electric-driven m
View details
Auxiliary Marine Engine(50HZ)
Product Description YC12VC Marine G-drive auxiliary engine Yuchai proudly boasts an impressive infrastructure with 11 state-of-the-art engine assembly lines and a robust array of 169 test-run benches. Within this extensive setup, there are
View details
Auxiliary Marine Engine(50HZ)
Product Description YC6B Marine Engine 85-165Ps Power Coverage Adapted Models:This dynamic engine series is perfectly suited for a wide array of applications, primarily powering 50~100kW common and emergency generator sets. It robustly fuel
View details
