Diesel Generator Set

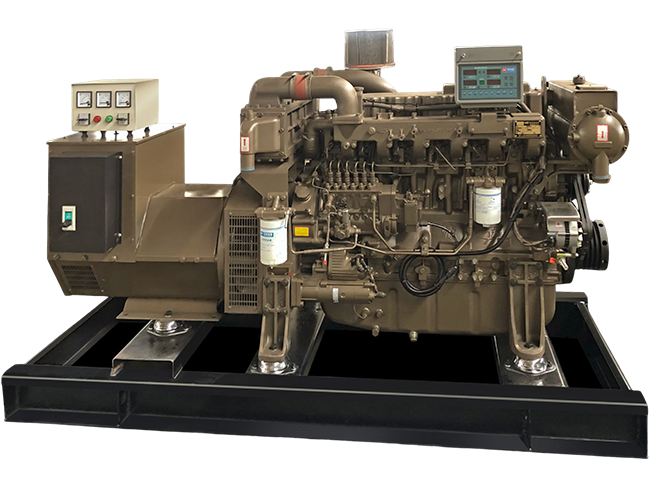

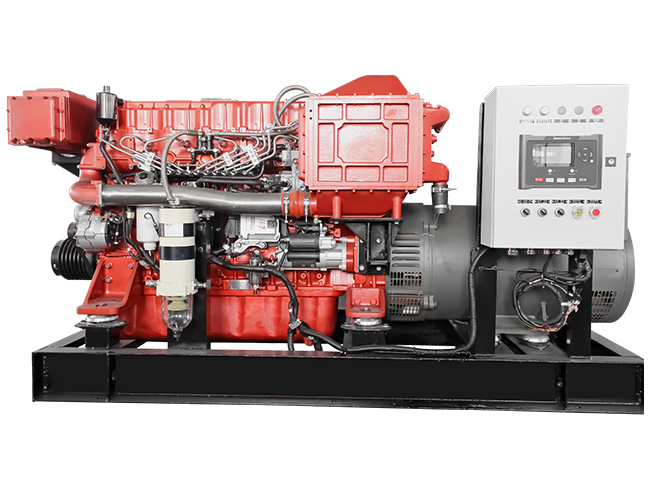

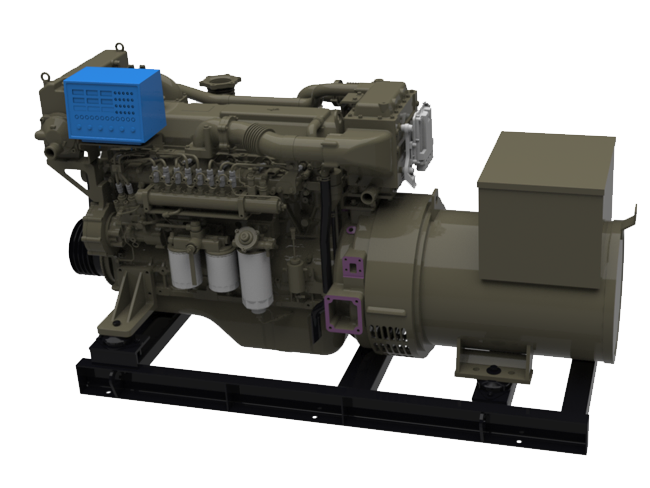

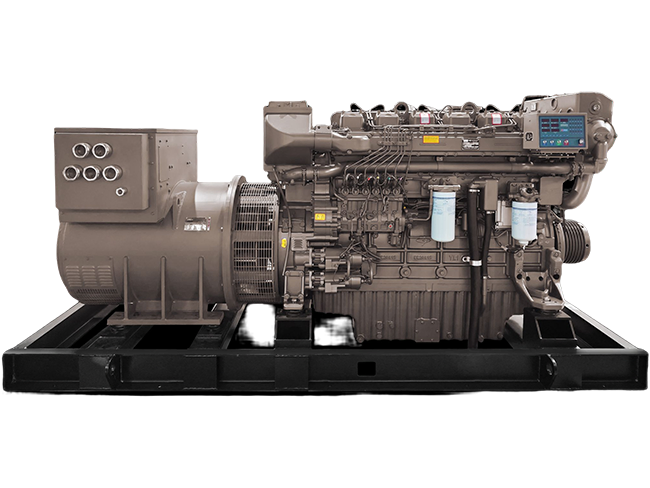

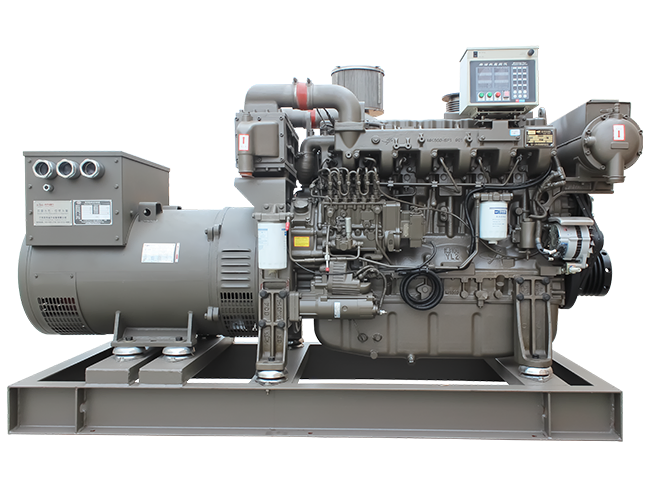

Chinayuchai Yc6K Marine High-Efficiency Yuchai Diesel Generator Set for Reliable Power

Chinayuchai Yc6K Marine High-Efficiency Yuchai Diesel Generator Set for Reliable Power (YUCHAI YC6K Marine generator series)

Customization: Available
After-sales Service: Enquiry
Warranty: Enquiry

Send inquiry hylicopower@126.com

Product Detail

Basic Info.

Model NO.	YUCHAI YC6K Marine generator series	Ignition Mode	Electric Ignition
Speed	High Speed	Cooling Cylinder	Internal Circulationclosed Circulating Water Cool
Intake Pressure Impulse	Supercharged	Fuel	Diesel
Number of Strokes	Four-Stroke	Type	Electric Motor
Rated Speed R/Min	1500	Rated Power Factor(Cosφ)	0.8(Lag)
Frequency	50Hz	Power Supply Type	Three-Phase AC
Connection Mode of Motor Winding	Three-Phase Four-Wire	Transport Package	Export Packaging
Specification	254011701350	Trademark	YUCHAI
Origin	China	HS Code	8502110000

Product Description

Technical parameters
Name				Main Technical Parameters
Genset model				CCFJ300J-W
Power supply type				Three-phase AC
Rated power kW				300
Rated voltage V				400
Rated current A				541.3
Rated frequency (Hz)				50
Rated power factor(COSφ)				0.8(Lag)
Rated speed r/min				1500
Absolute value of steady-state voltage regulation %				≤2.5
Absolute value of transient voltage deviation (%)		Sudden unloading60% Rated current		≤20
		Sudden load60%Rated current		≤15
Voltage stabilization time (s)				≤1.5
Absolute value of voltage fluctuation rate %				≤1
Absolute value of transient speed regulation %	Sudden load0-50%			≤10
	Sudden load50-100%
	Sudden unloading100%-0
Transient speed regulation stabilization time s				≤5
Steady-state speed regulation %				≤5
Absolute value of speed fluctuation rate%				≤0.5
Insensitivity of genset speed governing system %				≤0.5
Fuel consumption rate under rated conditions (g/(kW·h))				≤205

Specific oil consumption g/(kW·h)				≤0.1
Fuel grade				Summer: 0#, 10# light diesel of GB 19147-2016 premium grade or first grade;;
				Winter: 0#, -10#, -20# and -35# light diesel of GB 19147-2016 premium grade or first grade (selected based on the ambient temperature))
Oil grade				Summer: 40CF, 15W/40CF;
				Winter: 30CD, 10W/30CD or other diesel engine oil that is not inferior to Grade CF in GB 11122-2006 and suitable for the environment.
Start mode				Electric start
Cooling mode				Internal circulation:Closed circulating water cooling,External circulation:Open water cooling
Connection mode of motor winding				Three-phase four-wire
Operating mode of genset				Continuous
Operating environment conditions			Ambient temperature	45°C
			Outboard water temperature	32°C
			Inclination angle	Hell: 15°; roll: 22.5°; trim: 7.5°; pitch: 10°
Temperature rise			Thermal classificationA	55°C
			Measurement method R
Short circuit				The alternator and its excitation system can maintain at least 3 times the rated current for at least 2s under steady-state short-circuit conditions.
Overload				50% overcurrent; 2 min
Fuel engine model				YC6K490L-C20
Rated power of diesel engine (kW)				360
Alternator model				SB-HW4.D-300
				(SAE1-14)
Rated power of motor (kW)				300
Genset weight (kg)				2600
Diemension(Length × width × height) mm				2540×1170×1350
Note: Dimension (LWH) may vary with the configuration.

In the transformative year of 1951, a new era was ushered in Yulin, within the enchanting Guangxi Zhuang Autonomous Region, as the illustrious Guangxi Yuchai Machinery Group Co., Ltd. was established, fondly known as Yuchai Group. This powerhouse in investment and finance management epitomizes excellence in both capital operations and asset stewardship. Its vast influence is underscored by an awe-inspiring network of over 30 subsidiaries, including fully-owned entities and joint-stock ventures. With assets towering at an impressive CNY 41.7 billion, it proudly employs a dynamic team of approximately 16,000 dedicated individuals. As a frontrunner in internal combustion engine manufacturing, Yuchai Group's extensive product range permeates the sprawling industrial landscape of China. Its industrial might is deeply entrenched in strategic regions such as Guangxi, Guangdong, Jiangsu, Anhui, Shandong, Hubei, Sichuan, Chongqing, and Liaoning. With annual sales triumphantly surpassing CNY 40 billion, Yuchai Group reigns supreme as the unchallenged leader in engine sales, consistently upholding its prestigious standing.
Yuchai Group shines luminously among China's top 500 enterprises and manufacturing giants, proudly securing the 10th position among the Top 100 China machinery industry companies. It also commands an admirable position as 100th among China's 500 Most Valuable Brands, with its brand value soaring to an incredible CNY 57.2 billion. Celebrated for its profound national company culture and ethical advancements, Yuchai Group has been honored with the 'President's Quality Award of Guangxi Zhuang Autonomous Region' and a prestigious 'Nomination for the China Quality Award.' The company's unwavering dedication to sustainable practices is underscored by its consistent publication of the sustainable development report for an impressive 13 years, setting a visionary benchmark for excellence.
As a beacon of innovation, Yuchai Group embodies a relentless pursuit of excellence in system, technological, and management innovation, cementing its position as a trailblazer in the industry. The company's steadfast commitment to global innovations and talent acquisition bolsters its core competitiveness while channeling social capital into visionary enterprises. These pioneering efforts drive the evolution of three pivotal industry sectors: 'engine manufacturing and industry chain,' 'logistics and supply chain service,' and 'new energy industry (electric power and automobile) and related services.' As a pioneer in engine research, Yuchai Group consistently leads the charge by launching engines that meet China IV, V, and VI emission standards, setting industry benchmarks. This leadership solidifies its vital role in the green revolution, delivering eco-friendly and cost-efficient power solutions to its esteemed clients.
Yuchai engines leave an indelible mark on the global stage, reaching an astounding 180 countries and regions across Asia, Europe, America, and Africa. With its strategically located headquarters in Yulin, Guangxi Zhuang Autonomous Region, Yuchai Group adeptly distributes its production bases throughout China. Furthermore, the company has established significant joint R&D centers and marketing branches internationally. Consistently achieving remarkable feats, Yuchai Group surpasses a notable annual sales revenue of over 30 billion yuan, coupled with an impressive engine output of 600,000 sets each year.
