Korea D-I Marine Gearbox

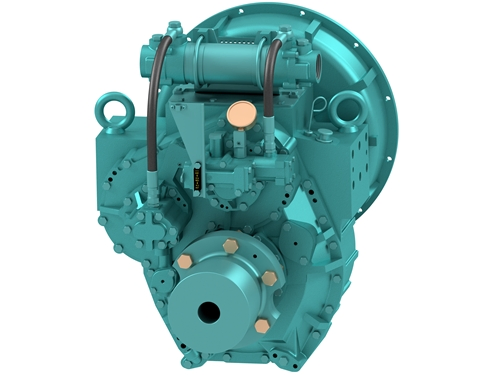

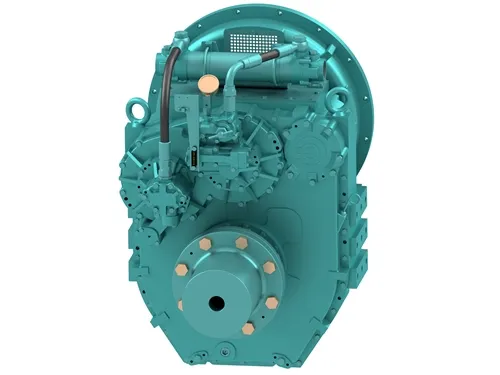

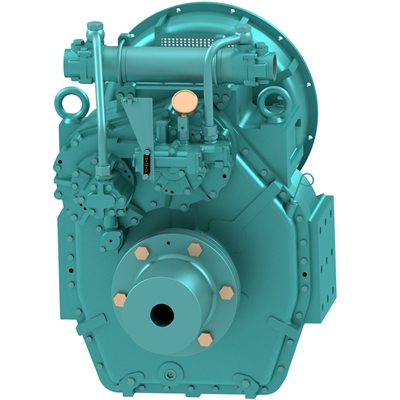

Korea D-I Marine Transmission DMT460HL , Ratio3.02, 3.28, 3.56, 4.07, 4.48, 4.95
Product Description DMT460HL electrically controlled transmissApplicationsMarine : Fishing boat, Trawler, Tug boat, Ro-Ro ferryComprehensive Standard Supply-Mechanical control valve-Cable bracket/clamp parts.-0il cooler/cover-Companion flang
Product Detail
Product Description
DMT460HLelectrically controlled transmiss
Applications
Marine : Fishing boat, Trawler, Tug boat, Ro-Ro ferry
Comprehensive Standard Supply
-Mechanical control valve
-Cable bracket/clamp parts.
-0il cooler/cover
-Companion flange/Reamer bolts-Bell housing(Selection)
-CENTA Flexible coupling
Outstanding Features
-Marine reduction gearbox with hydraulic clutch.-Suitable for twin engines with the same reduction ratio asforward/reverse.
-Design and strict quality management according to lS09001standards.
-Use of seawater resistant castings.
-Quiet operation with precise gearing.
-Tapered roller bearing application considering maximum thrust.
Compact design, minimal appearance in its class.
-Permanently available oil filter(metal) applied.
-G0 HOME(emergency bolt application) function.
Customizable Options
-Electric control valve(12V, 24V optional)
-Mechanical trolling valve
-Mounting brackets(Flat type, Customized)
-Class
D-I INDUSTRIAL, a hallmark of excellence. Co., Ltd. stands as South Korea's premier manufacturer
of marine transmissions, steering systems, and power take-offs since 1990, defining industry standards.
Pioneering Core Technology
Expertise in Design, Interpretation, Manufacturing, and appreciation of gears and transmissions, including Spur, Helical, and Conical (Beveloid), as well as Hydraulic friction clutches.
Excellence in the Design, Interpretation, Manufacturing, and Appreciation of Side Thrusters.
Proficiency in the Design, Manufacturing, and Appreciation of Steering Systems, including Helm Pumps and Cylinders.

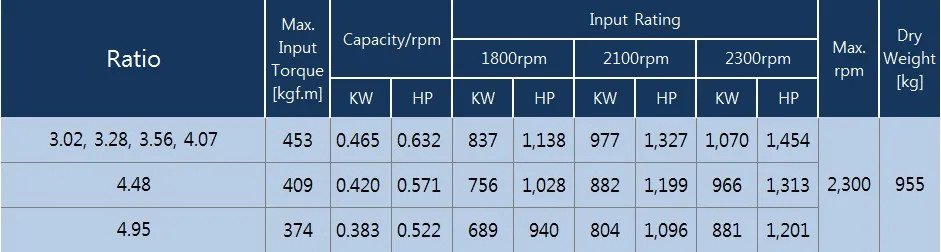

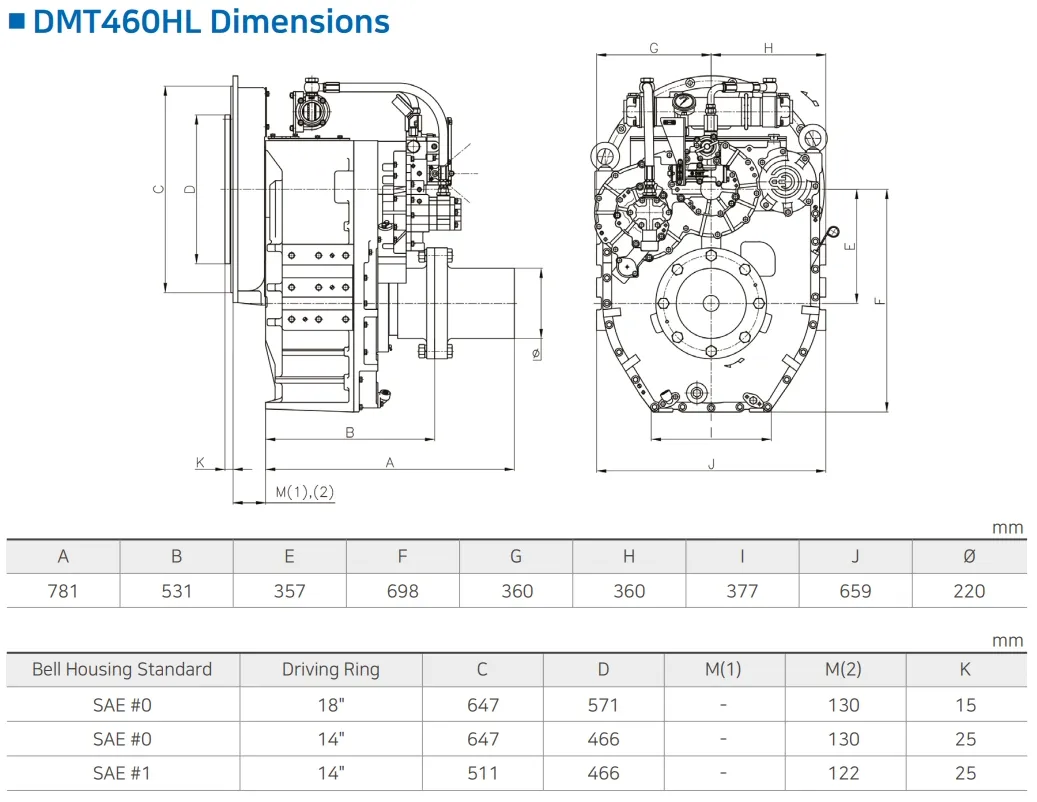

SPECIFICATIONS

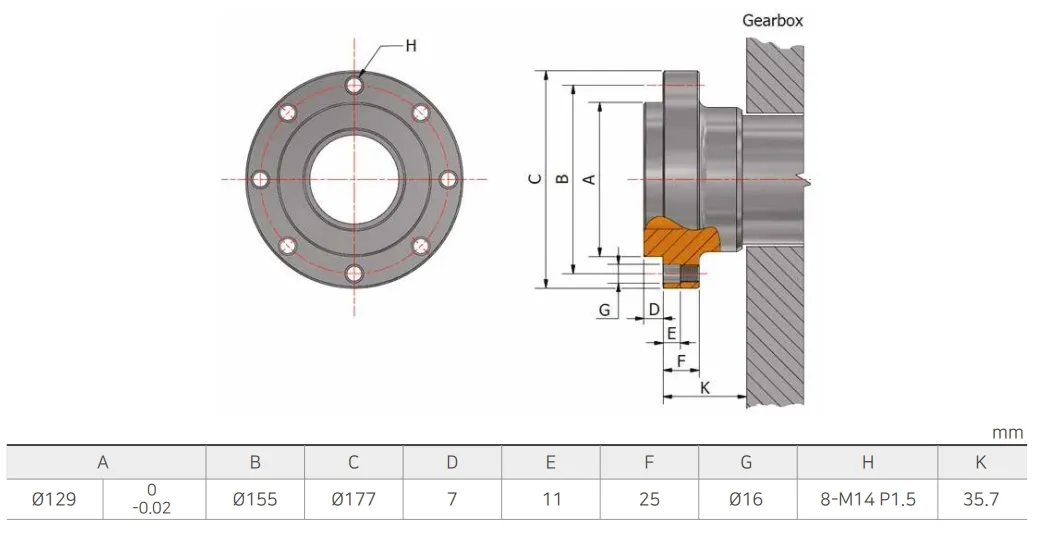

Input flange dimensions tailored for precise fit.
Service support
From matching to after-sales response.
Share the model, vessel type, required power or operating conditions. HYLICO POWER will help confirm a practical configuration and the next quotation step.
