Land-based diesel generator set

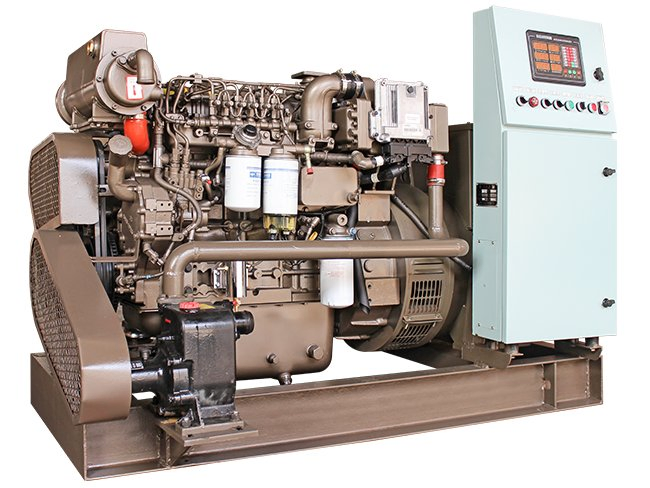

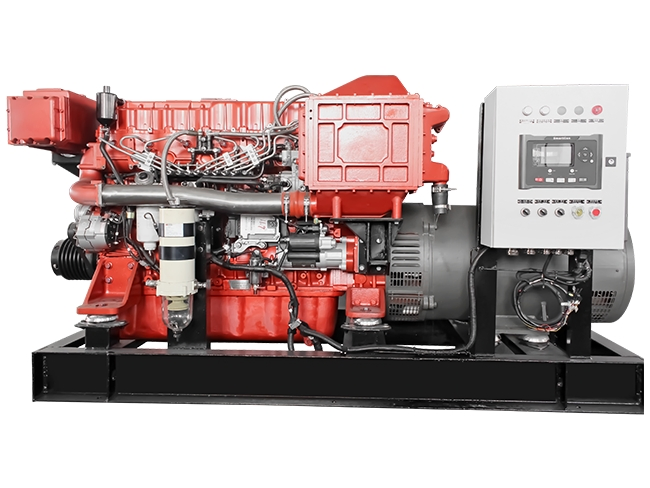

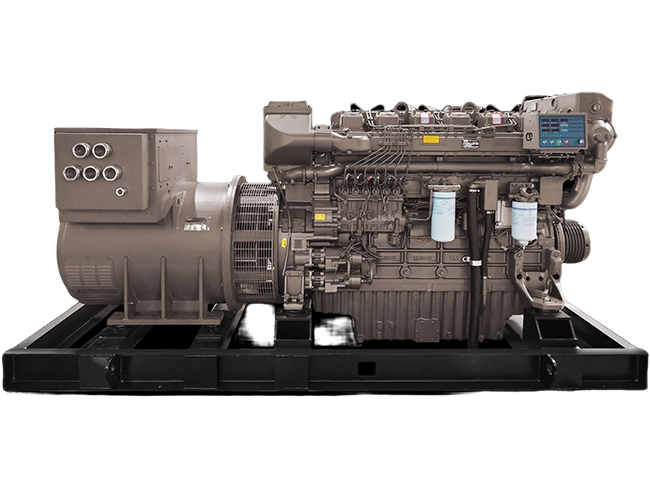

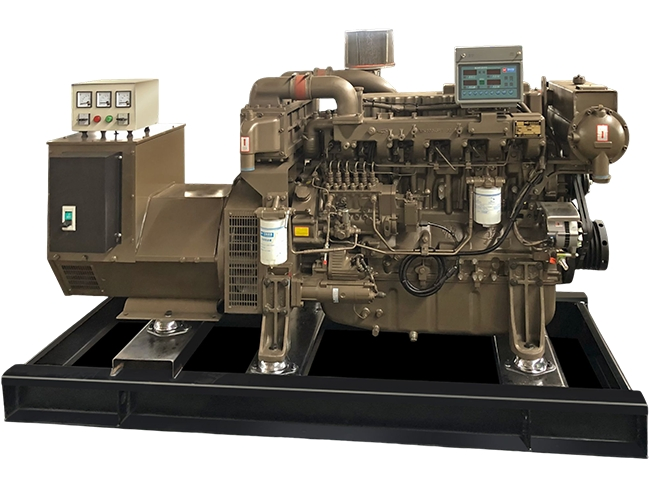

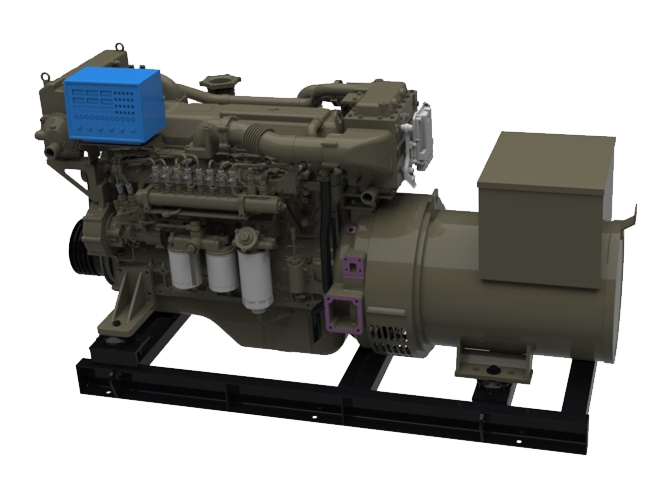

China High-Performance Yuchai Diesel Generator Set for Reliable Power Supply Yc6mk Series

Product Description Technical parameters Name Main Technical Parameters Genset model CCFJ180J-W1 CCFJ200J-W2 Power supply type Three-phase AC Rated power (kw) 180 200 Rated voltage (V) 400 400 Rated current (A) 324.8 360.8 Rated frequency (

Send inquiry hylicopower@126.com

Product Detail

Product Description

Technical parameters
Name				Main Technical Parameters
Genset model				CCFJ180J-W1		CCFJ200J-W2
Power supply type				Three-phase AC
Rated power (kw)				180		200
Rated voltage (V)				400		400
Rated current (A)				324.8		360.8
Rated frequency (Hz)				50
Rated power factor(COSφ)				0.8(Lag)
Rated speed (r/min)				1500
Absolute value of steady-state voltage regulation (%)				≤2.5
Absolute value of transient voltage deviation (%)		Sudden unloading 60% rated current		≤20
		Sudden load 60% rated current		≤15
Voltage stabilization time (s)				≤1.5
Absolute value of voltage fluctuation rate (%)				≤1
Absolute value of transient speed regulation (%)	Sudden load 0-50%			≤10
	Sudden load 50-100%
	Sudden unloading 100%-0
Transient speed regulation stabilization time (s)				≤5
Steady-state speed regulation (%)				≤5
Absolute value of speed fluctuation rate (%)				≤0.5
Insensitivity of genset speed governing system (%)				≤0.5
Fuel consumption rate under rated conditions (g/(kW·h))				≤230

Specific oil consumption (g/(kW·h))				≤0.35
Fuel grade				Summer: 0#, 10# light diesel of GB 19147-2016 premium grade or first grade
				Winter: 0#, -10#, -20# and -35# light diesel of GB 19147-2016 premium grade or first grade (selected based on the ambient temperature)
Oil grade				Summer: 40CF, 15W/40CF
				Winter: 30CD, 10W/30CD or other diesel engine oil that is not inferior to Grade CF in GB 11122-2006 and suitable for the environment.
Start mode				Electric start
Cooling mode				Internal circulation:Closed circulating water cooling,External circulation,Open water cooling
Connection mode of motor winding				Three-phase four-wire
Operating mode of genset				Continuous
Operating environment conditions			Ambient temperature	45°C
			Outboard water temperature	32°C
			Inclination angle	Hell: 15°; roll: 22.5°; trim: 7.5°; pitch: 10°
Temperature rise			Thermal classification A	55°C

			Measurement method R
Short circuit				The alternator and its excitation system can maintain at least 3 times the rated current for at least 2s under steady-state short-circuit conditions.
Overload				50% overcurrent; 2 min
Fuel engine model				YC6MK300L-C25	YC6MK330L-C22
Rated power of diesel engine (kW)				219	240
Alternator model				SB-HW4.D-180	SB-HW4.D-200
				(SAE1-14)	(SAE1-14)
Rated power of motor (kW)				180	200
Genset weight (kg)				1868	1933
Dimension (L × W × H) mm				2453×1063×1385	2432×1063×1385
Note: Dimension (LWH) may vary with the configuration.

In the historic and transformative year of 1951, a beacon of innovation was ignited in the picturesque locale of Yulin, nestled within the captivating Guangxi Zhuang Autonomous Region. It was here that the esteemed Guangxi Yuchai Machinery Group Co., Ltd., fondly referred to as Yuchai Group, was born. This distinguished titan in the realms of investment and financial management epitomizes the zenith of achievement in both capital ventures and asset management. Boasting an awe-inspiring network of over 30 subsidiaries, which includes wholly-owned and joint-stock enterprises, Yuchai Group's expansive reach is truly remarkable. Possessing assets that have soared to a colossal CNY 41.7 billion, it proudly employs around 16,000 exceptional individuals. As a trailblazer in the internal combustion engine sector, Yuchai Group offers a comprehensive suite of products that serve as a crucial pillar of China's vast industrial landscape. Its formidable industrial might is strategically rooted in key locations such as Guangxi, Guangdong, Jiangsu, Anhui, Shandong, Hubei, Sichuan, Chongqing, and Liaoning. With annual sales triumphantly exceeding CNY 40 billion, Yuchai Group stands unrivaled as the leader in engine sales, steadfastly preserving its esteemed and illustrious reputation.
Yuchai Group shines resplendently among China's top 500 enterprises and manufacturing giants, commendably ranking 10th among the Top 100 China machinery industry companies. Its illustrious position is further cemented as it holds the 100th spot among China's 500 Most Valuable Brands, with its brand value reaching an astounding CNY 57.2 billion. Celebrated for embodying a rich national company culture and ethical advancements, Yuchai Group has been honored with the prestigious 'President's Quality Award of Guangxi Zhuang Autonomous Region' and a coveted 'Nomination for the China Quality Award.' The company's unwavering dedication to sustainability is exemplified by its unfaltering publication of the sustainable development report for an impressive 13 consecutive years, setting a forward-thinking benchmark for industry excellence.
Yuchai Group, a radiant beacon of innovation, drives forward advancements in system, technological, and management innovation, securing its eminent stature at the forefront of the industry. The company's relentless pursuit of global innovations and strategic talent acquisition bolsters its core competitiveness while strategically channeling social capital into pioneering enterprises. These visionary efforts propel the evolution of three critical industry sectors: 'engine manufacturing and industry chain,' 'logistics and supply chain service,' and 'new energy industry (electric power and automobile) and related services.' As a leader in engine research, Yuchai Group consistently sets the pace by unveiling engines that meet the stringent China IV, V, and VI emission standards, establishing industry benchmarks of excellence. This leadership solidifies its crucial role in the green revolution, delivering environmentally conscious and economically astute power solutions to its valued clientele.
Yuchai engines make a profound global impact, reaching an extraordinary 180 countries and regions spanning Asia, Europe, America, and Africa. With its strategically located headquarters in Yulin, Guangxi Zhuang Autonomous Region, Yuchai Group deftly extends its production bases throughout China. Additionally, the company has established prominent joint R&D centers and marketing branches on an international scale. Achieving significant milestones, Yuchai Group consistently surpasses an impressive annual sales revenue of over 30 billion yuan, alongside a remarkable engine production output of 600,000 units annually.
