Product Details

Product Description

Apply to
Marine: Perfect for Fishing boats, Leisure boats, Cruises. Industrial: Ideal for Water and Sand Pumps.

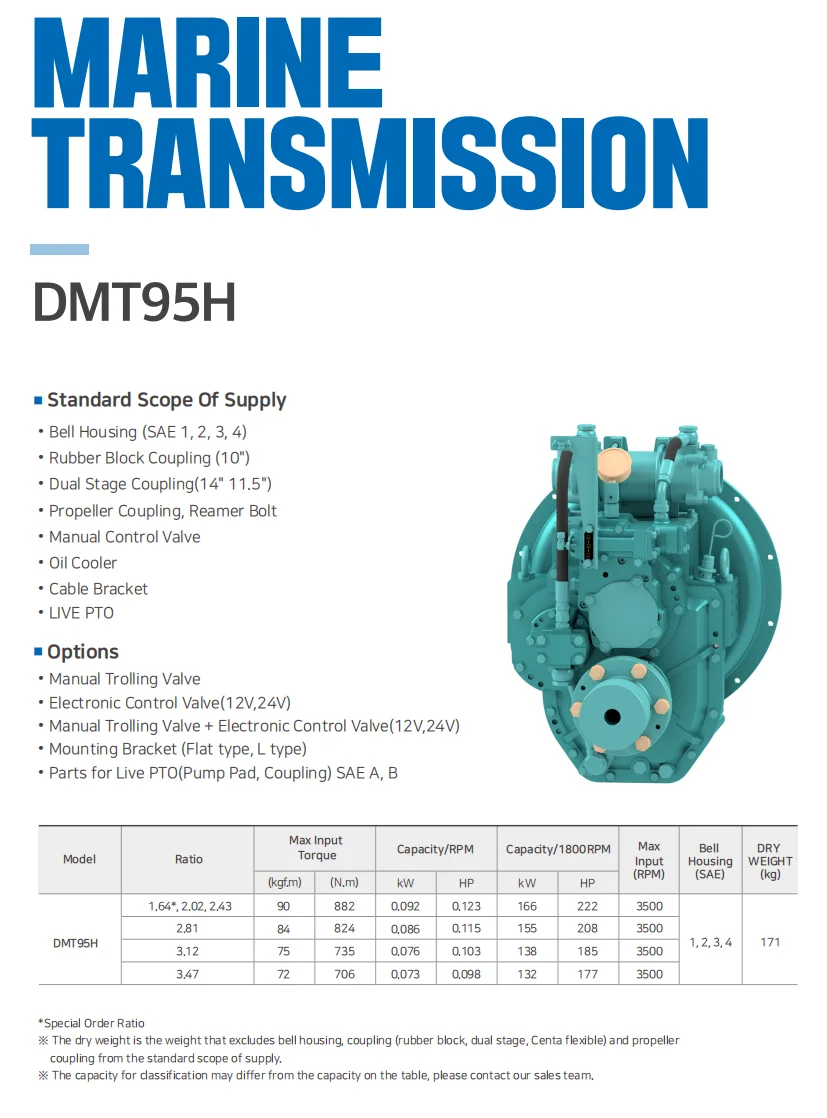

Standard supply
- Mechanical control valve for precise operation
- Cable bracket/clamp parts for secure connections.
- Oil cooler/cover to maintain optimal temperature

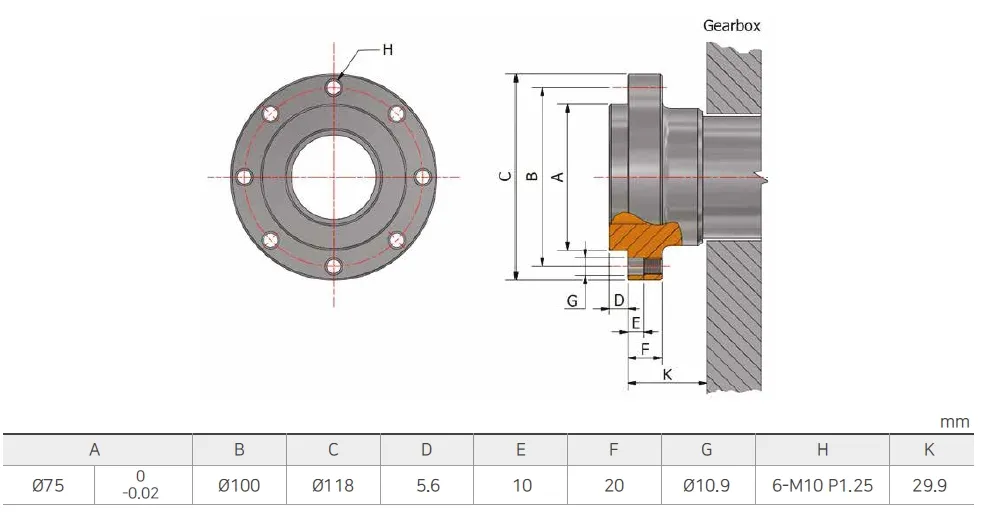

- Companion flange/Reamer bolts for robust assembly
- Bell housing (SAE1, 2, 3, 4) for versatile compatibility
- Dual stage coupling (14", 11.5") for flexible performance
- Rubber Block Coupling (10") for effective vibration absorption

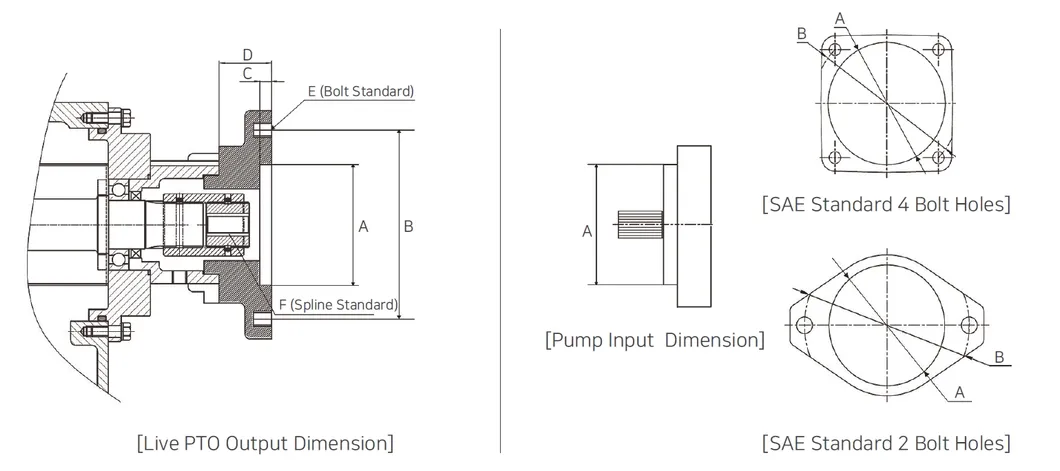

- LIVE PTO for dynamic power transmission

Features

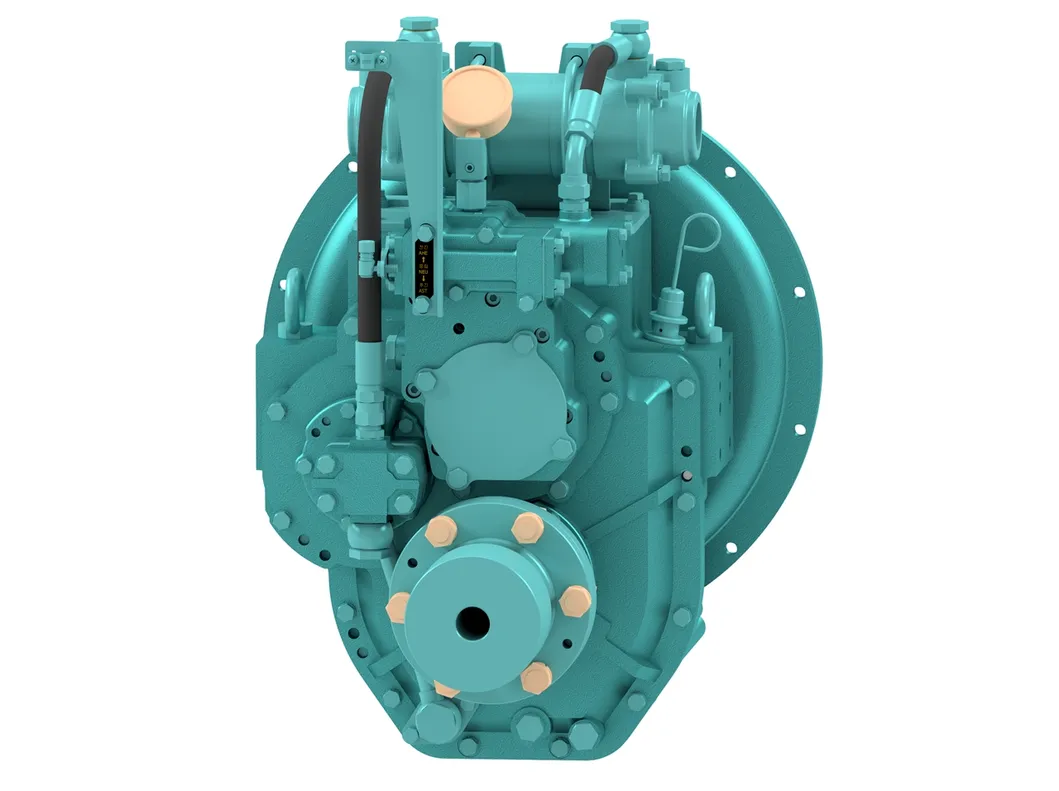

- Advanced marine reduction gearbox with hydraulic clutch, perfectly suited for twin engines with identical forward/reverse reduction ratios.
- Meticulous design and rigorous quality management adhering to ISO9001 standards.
- Crafted with seawater-resistant castings to withstand marine challenges.
- Delivers quiet operation through precision-engineered gearing.
- Incorporates tapered roller bearings for optimal thrust management.
- Flaunts a compact design with the least visual impact in its class.
- Permanently available metal oil filter for maintenance efficiency.
- Equipped with a 'GO HOME' emergency bolt application for added safety.

Options
- Electric control valve (available in 12V, 24V options)- Mechanical trolling valve- Mounting brackets (Flat Type, Customized)- Pump Mounting Kit (SAE A, B)- Class options for varied applications.

Distinctive Features

- Exhibits a remarkable gear ratio of approximately 6:1, delivering exceptional maritime power and outstanding performance.

- Engineered with high-strength driving gear bearings for sustained reliability and durability.

- Incorporates specially designed thruster bearings for the output shaft, ensuring smooth and efficient operations.

- Features a cutting-edge marine reduction system paired with a reliable hydraulic clutch for seamless transitions.

- Ideal for twin-engine configurations, ensuring consistent reduction ratios and effortless navigation both forward and reverse.

- Adheres to stringent ISO9001 standards, guaranteeing unparalleled quality and precision craftsmanship.

- Built with seawater-resistant castings, offering exceptional durability in harsh marine conditions.

- Enjoys whisper-quiet operation, thanks to exquisitely engineered gearing that minimizes noise disturbances.

- Designed with tapered roller bearings to masterfully manage maximum thrust requirements.

- Embodies a sleek, compact design that elevates aesthetic standards with its minimalist appeal.

- Equipped with a permanent metal oil filter, ensuring exceptional maintenance ease.

- Integrated 'GO HOME' emergency function for enhanced security and peace of mind.
D-I INDUSTRIAL Co., Ltd. - The Premier Authority
Since 1990, a pioneering leader in marine transmission systems, steering mechanisms, and innovative power take-off solutions across South Korea.
Core Technological Mastery
Masters in the design, interpretation, and manufacture of gears and transmissions, excelling in spur, helical, and conical (beveloid) gears complemented by cutting-edge hydraulic friction clutches.
Renowned for our superior craftsmanship in side thruster design, ensuring peak performance and reliability.
Experts in designing, producing, and evaluating steering systems, excelling in helm pumps and cylinders for precision and effectiveness.
