Korea D-I Marine Gearbox
Product Details
Review product information, specifications and application details, supported by HYLICO POWER product matching and export coordination.
Korea D-I Marine Gearbox

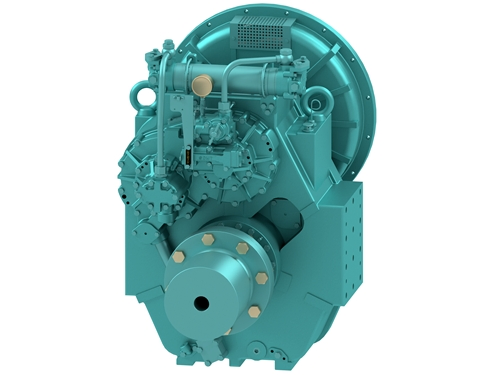

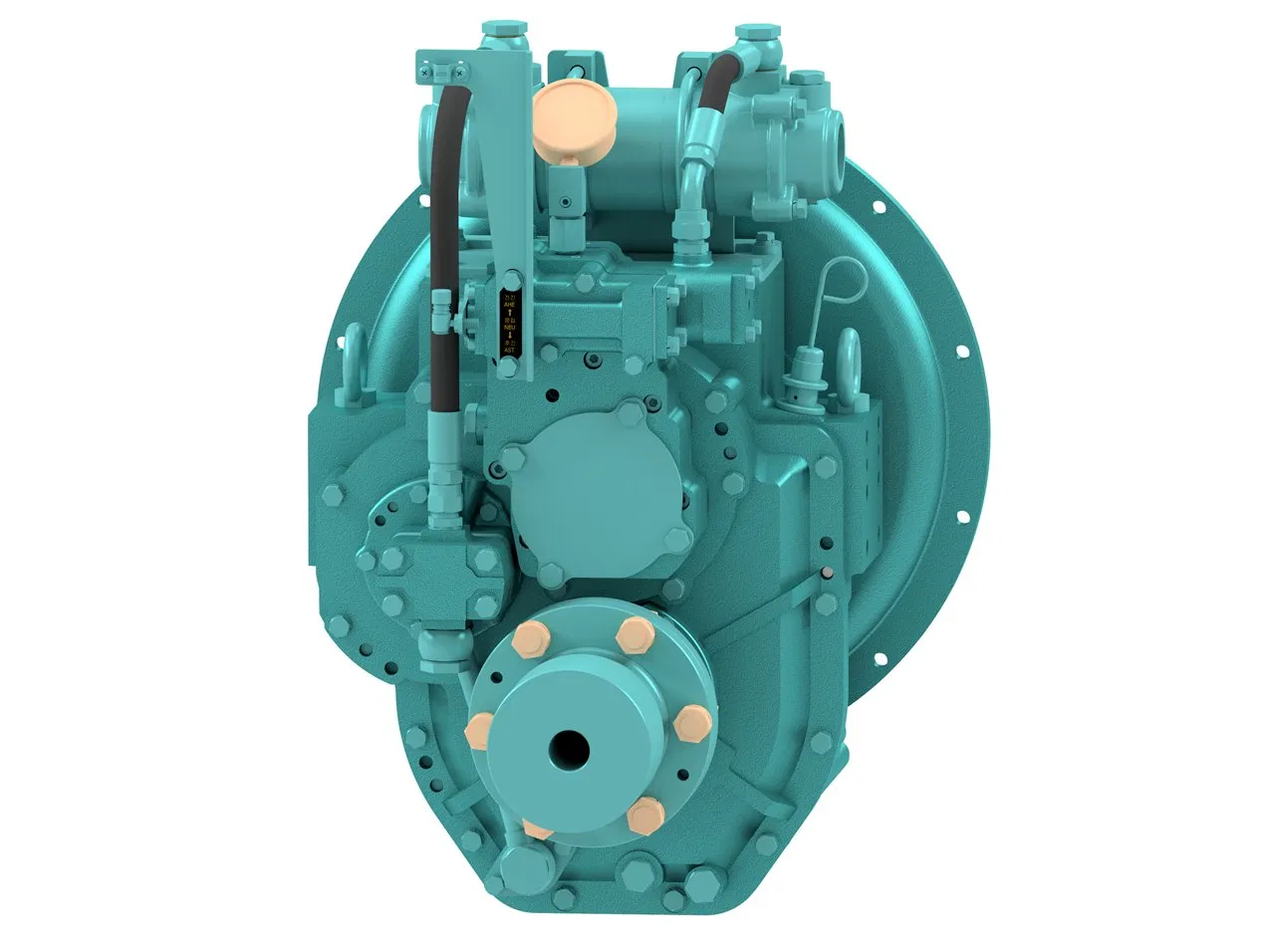

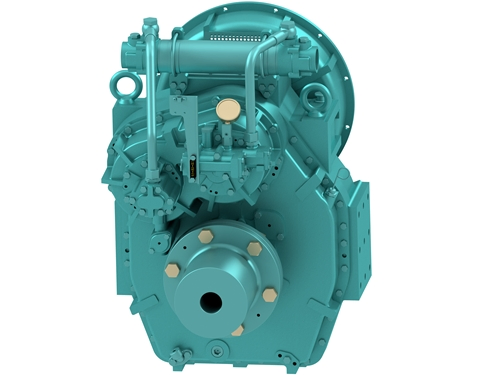

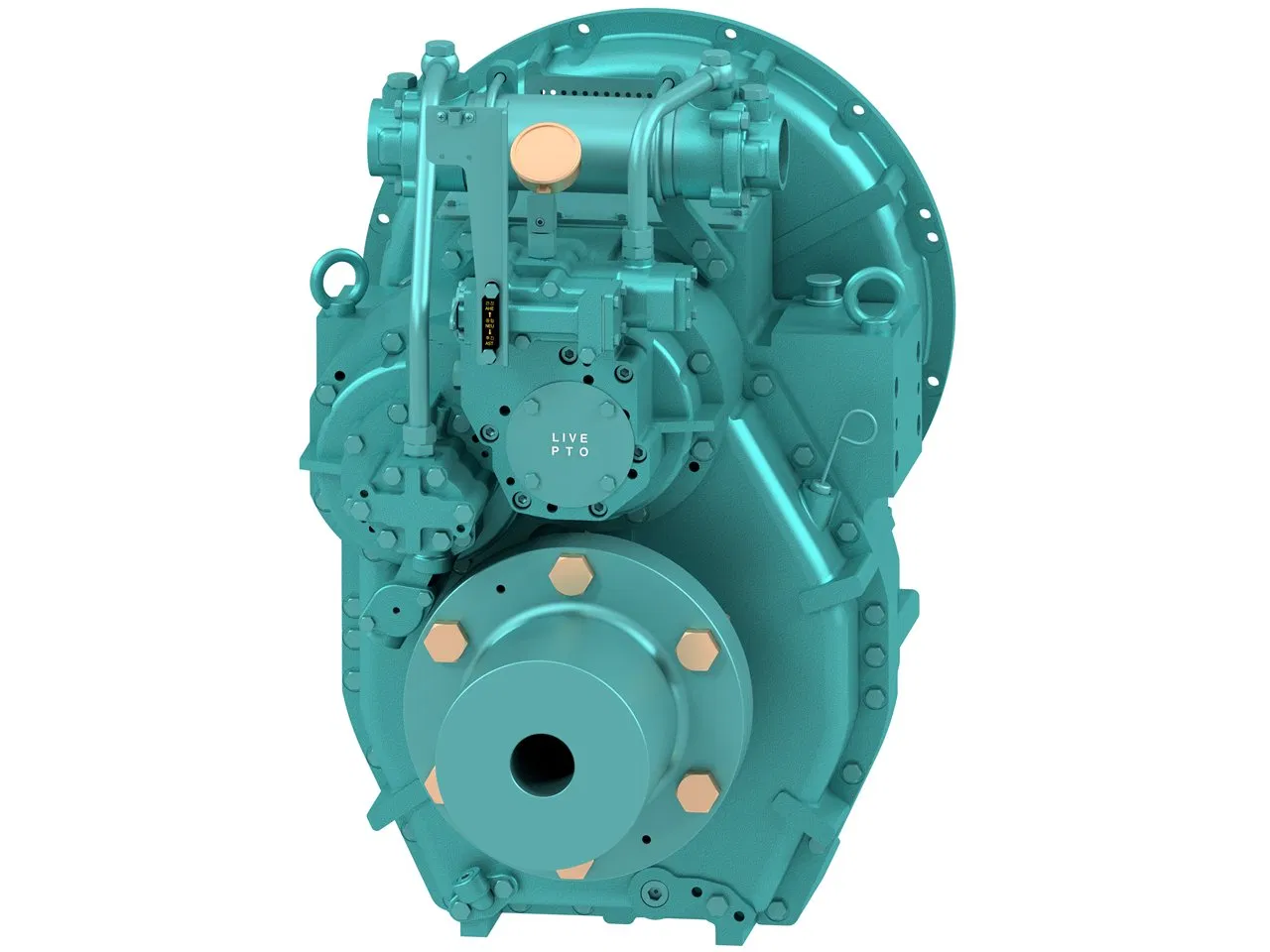

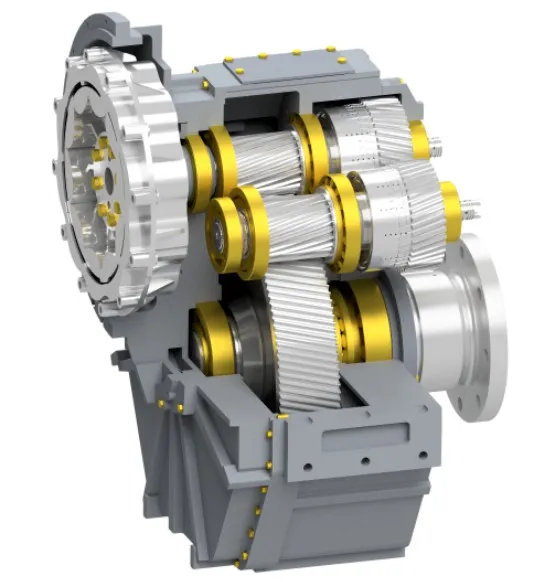

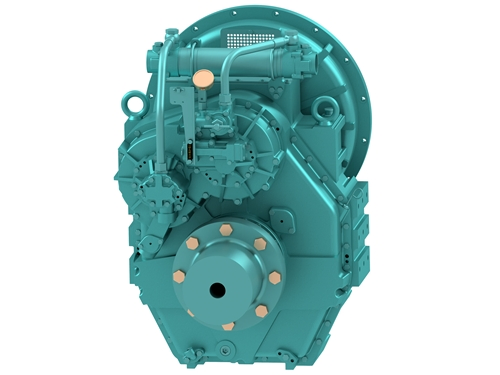

Durable Korea Di Marine Gearbox Designed for Heavy-Duty Applications
Durable Korea Di Marine Gearbox Designed for Heavy-Duty Applications (DL/BL Model)
- Customization
- Available
- Application
- Marine, Heavy Duty Workboat Fishing Boat, Trawler, Tug Bo
- Function
- Distribution Power, Clutch, Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
Product Detail
Basic Info.
| Model NO. | DL/BL Model | Layout | Durable Structure of Driving Gear Bearing |
| Hardness | Lubrication Structure of Gear and Bearing | Installation | Thruster Bearing for Output Shaft |
| Step | High Elasticity Coupling Provided | Type | Quiet Operation with Precise Gearing |
| Features | ISO9001 | Functionality | Tug Boat, Push Boat, Inland Cargo, Fishing, Tanker |
| Metal | Permanently Available Oil Filter(Metal) Applied | Parts | Use of Seawater Resistant Castings |
| Transport Package | Wooden Crates for Ocean Transportation | Specification | inquire |
| Trademark | Di | Origin | China |
| HS Code | 8483409090 |
Product Description
Features
- Revel in the superior engineering of our gearbox with an exceptional gear ratio of approximately 6:1, delivering unmatched power and efficiency.
- Experience peace of mind with the robust construction of driving gear bearings, built to offer enduring reliability no matter the challenge.
- Tailored thruster bearings ensure peak performance of the output shaft, setting a new standard in excellence.
- Discover the advanced marine reduction gearbox, integrated with a trustworthy hydraulic clutch system for seamless operation.
- Ideally designed for twin-engine installations, this gearbox provides a consistent reduction ratio for forward and reverse motions, ensuring uniform performance.
- Each product is crafted with precision under the rigorous standards of ISO9001, ensuring unmatched quality and exacting detail.
- Constructed with seawater-resistant castings, our gearboxes are built for longevity and enduring robustness in challenging marine conditions.
- Enjoy the silent efficiency of our gearbox, with precision-engineered gearing that significantly reduces noise, offering a whisper-quiet experience.
- Designed with tapered roller bearings, expertly crafted to handle maximum thrust conditions effortlessly.
- The gearbox features an innovative compact design, providing an elegant and minimalistic appearance unrivaled in its category.
- Equipped with a permanently available metal oil filter, it ensures maintenance is efficient, reducing downtime.
- Safety is paramount with the gearbox's emergency 'GO HOME' function, complemented by an emergency bolt application for added security.
D-IINDUSTRIAL Co., Ltd. stands as the leading and foremost manufacturer
of marine transmission systems, marine steering systems, and power take-off solutions in South Korea, proudly operating since 1990.
Core Technology
Our core strength lies in our prowess in designing, interpreting, and manufacturing a wide array of gears and transmissions, including spur, helical, and conical (beveloid) gears equipped with hydraulic friction clutches.
We possess extensive expertise in the design, interpretation, and manufacturing of side thrusters, showcasing our superior craftsmanship.
Mastery in the design, manufacturing, and evaluation of steering systems is our hallmark, featuring helm pumps and cylinders crafted to perfection.
| Model | Ratio | Kw/rpm | Max rpm | Weight[kg] | Bell Housing | Remark |
|---|---|---|---|---|---|---|
| DMT220DL | 3.50, 4.04 | 0.216 | 2,500 | 403 | 1,2 | LIVE PTO |
| 4.47 | 0.203 | 2,500 | 403 | 1,2 | LIVE PTO | |
| 4.72 | 0.182 | 2,500 | 403 | 1,2 | LIVE PTO | |
| DMT330DL | 2.61,3.10 | 0.318 | 2,300 | 768 | 0,1 | |
| 3.56 | 0.305 | 2,300 | 768 | 0,1 | ||
| 4.13 | 0.300 | 2,300 | 768 | 0,1 | ||
| 4.59 | 0.293 | 2,300 | 768 | 0,1 | ||
| DMT450DL | 3.02,3.28,3.56,4.07 | 0.465 | 2,300 | 910 | 0,1 | |
| 4.48 | 0.420 | 2,300 | 910 | 0,1 | ||
| 4.95 | 0.383 | 2,300 | 910 | 0,1 | ||
| DMT600DL | 3.02,3.28,3.56,4.07 | 0.641 | 2,200 | 1,209 | 0 | |
| 4.48 | 0.606 | 2,200 | 1,209 | 0 | ||
| 4.95 | 0.555 | 2,200 | 1,209 | 0 | ||
| DMT600BL | 4.12,4.48 | 0.642 | 2,200 | 1,400 | 0 | |
| 5.11 | 0.603 | 2,200 | 1,400 | 0 | ||
| 5.62 | 0.560 | 2,200 | 1,400 | 0 | ||
| 5.91 | 0.513 | 2,200 | 1,400 | 0 |
