Auxiliary Marine Engine(50HZ)

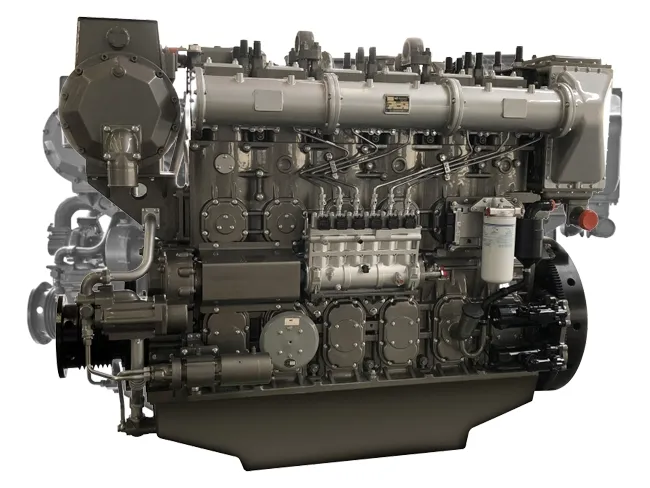

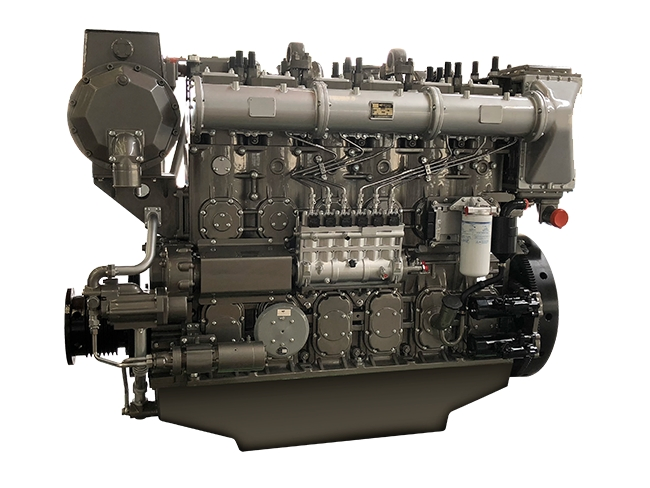

China High-Performance Yuchai Marine Engine for Reliable Nautical Power Yc6cl Series (YC6CL Series marine diesel engine)
| Model NO. | YC6CL Series marine diesel engine | Ignition Mode | Electric Ignition |
| Speed | High Speed | Cooling Cylinder | Water-Cooled |
| Intake Pressure Impulse | Supercharged | Piston Movement | Reciprocating |
| Fuel | Diesel | Number of Strokes | Four-Stroke |
| Cylinder Arrangement Form | L | Number of Cylinders | 6-Cylinder |
| Type | Combustion Engine | Overall Dimensions | 2496mm*1150mm*2163mm |
| Engine Oil Capacity | 130-160L | Displacement | 54.6 |
| Certificates | Zc,CCS.Eiapp,China National 2 Esionsmis | Transport Package | Export-Specific Packaging |
| Specification | Net weight 5380KG | Trademark | YUCHAI |
| Origin | China | HS Code | 8408100000 |
| Technical parameters | |||
| Item | YC6CL Series marine diesel engine | ||
| Model | YC6CL960L-C23 | YC6CL1035L-C23 | YC6CL1135L-C20 |
| Number of cylinders - bore × stroke (mm) | 6-200×290 | ||
| Displacement (L) | 54.6 | ||
| Number of valves per cylinder | 4 | ||
| Induction system | Turbocharged & intercooled | ||
| Rated power/speed (kW(Ps)/r/min) | 706(960)/1000 | 760(1035)/1000 | 835(1135)/1000 |
| Overload power/speed (kW(Ps)/r/min) | 776.6(1060)/1032 | 836(1140)/1032 | 918.5(1250)/1032 |
| Min. specific fuel consumption of external characteristics (g/kW·h) | ≤195 | ||
| Certificates | ZC,CCS,EIAPP,China II | ||
| Diemension (L×W×H) (mm) | 2496×1150×2172 | ||
| Dry weight (kg) | 5380 | ||
Service support
Share the model, vessel type, required power or operating conditions. HYLICO POWER will help confirm a practical configuration and the next quotation step.
Product inquiry
For faster matching, include the application, required power, quantity, destination and expected delivery time.
