Auxiliary Marine Engine(50HZ)
Review product information, specifications and application details, supported by HYLICO POWER product matching and export coordination.
Auxiliary Marine Engine(50HZ)

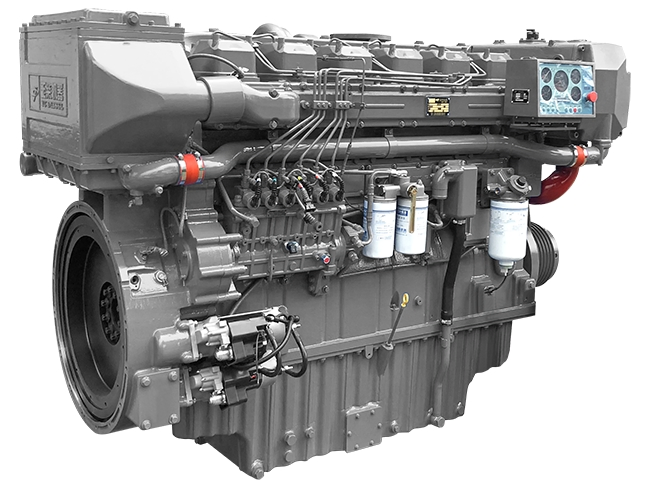

Product Description YC6TMarine engine,Boasting an impressive power range of 279kW to 478kW, This exceptional engine finds extensive application across a broad spectrum of marine propulsion needs, positioning it as the ultimate choice for a
| Technical parameters | |||||
| Item | YC6T Series marine diesel engine | ||||
| Model | YC6T650L-C28 | YC6T540L-C28 | YC6T480L-C28 | YC6T450L-C28 | YC6T380L-C28 |
| Number of cylinders - bore × stroke (mm) | 6-145×165 | 6-145×165 | |||
| Displacement (L) | 16.35 | 16.35 | |||
| Number of valves per cylinder | 4 | 4 | |||
| Induction system | Turbocharged & intercooled | Turbocharged & intercooled | |||
| Rated power/speed (kW(Ps)/r/min) | 478(650)/1800 | 396(540)/1800 | 352(480)/1800 | 330(450)/1500 | 279(380)/1200 |
| Overload power/speed (kW(Ps)/r/min) | 526(715)/1858 | 435.6(595)/1858 | 387.2(530)/1858 | 363(495)/1548 | 306.9(420)/1239 |
| Min. specific fuel consumption of external characteristics (g/kW·h) | ≤205 | ≤205 | |||
| Certificates | ZC,CCS,EIAPP,China II | ZC,CCS,EIAPP,China II | |||
| Diemension (L×W×H) (mm) | 1971×1124×1624 | 1971×1124×1624 | |||
| Dry weight (kg) | 1980 | 1980 | |||
Service support
Share the model, vessel type, required power or operating conditions. HYLICO POWER will help confirm a practical configuration and the next quotation step.
Product inquiry
For faster matching, include the application, required power, quantity, destination and expected delivery time.
