Main Marine Engine

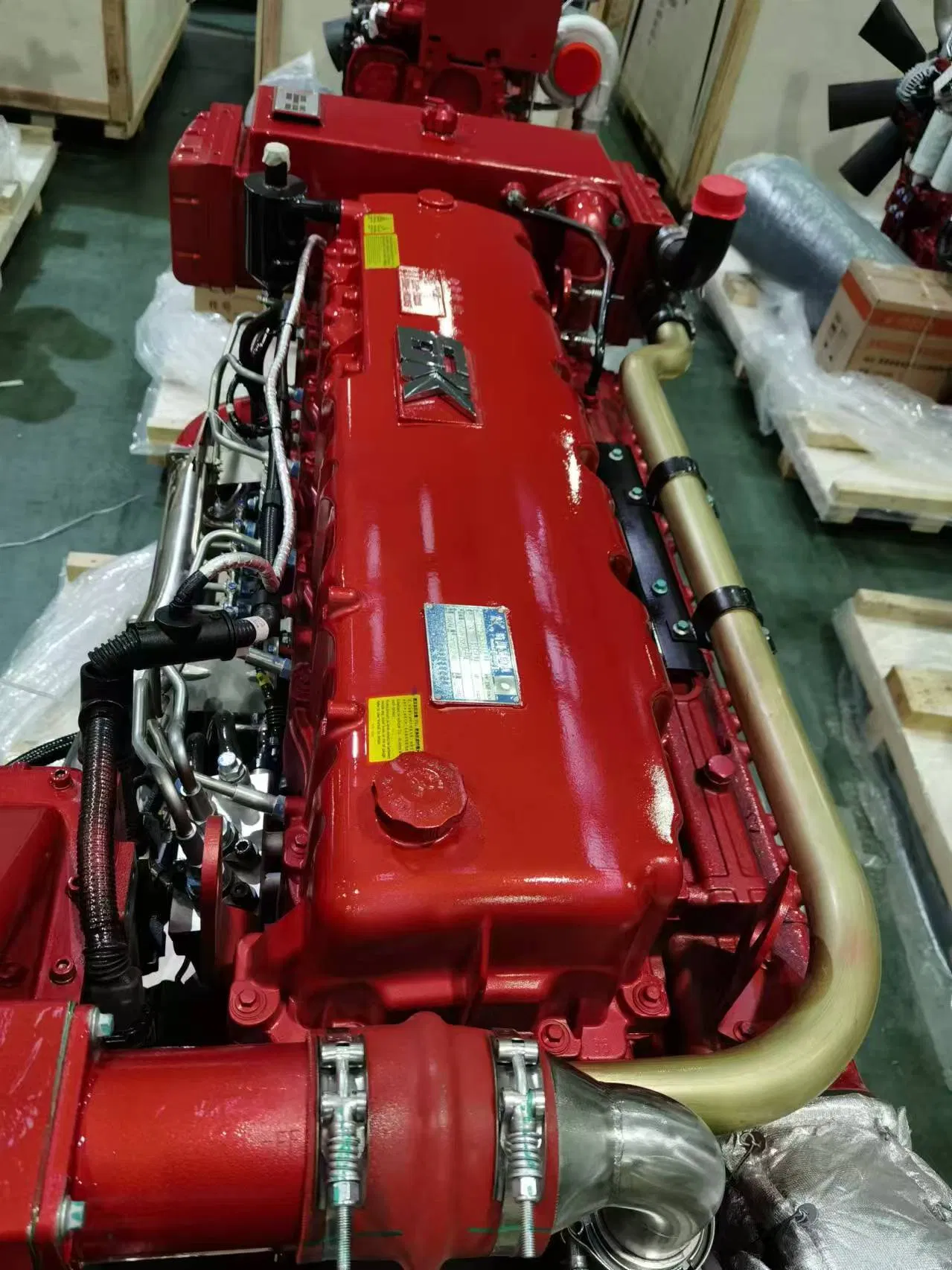

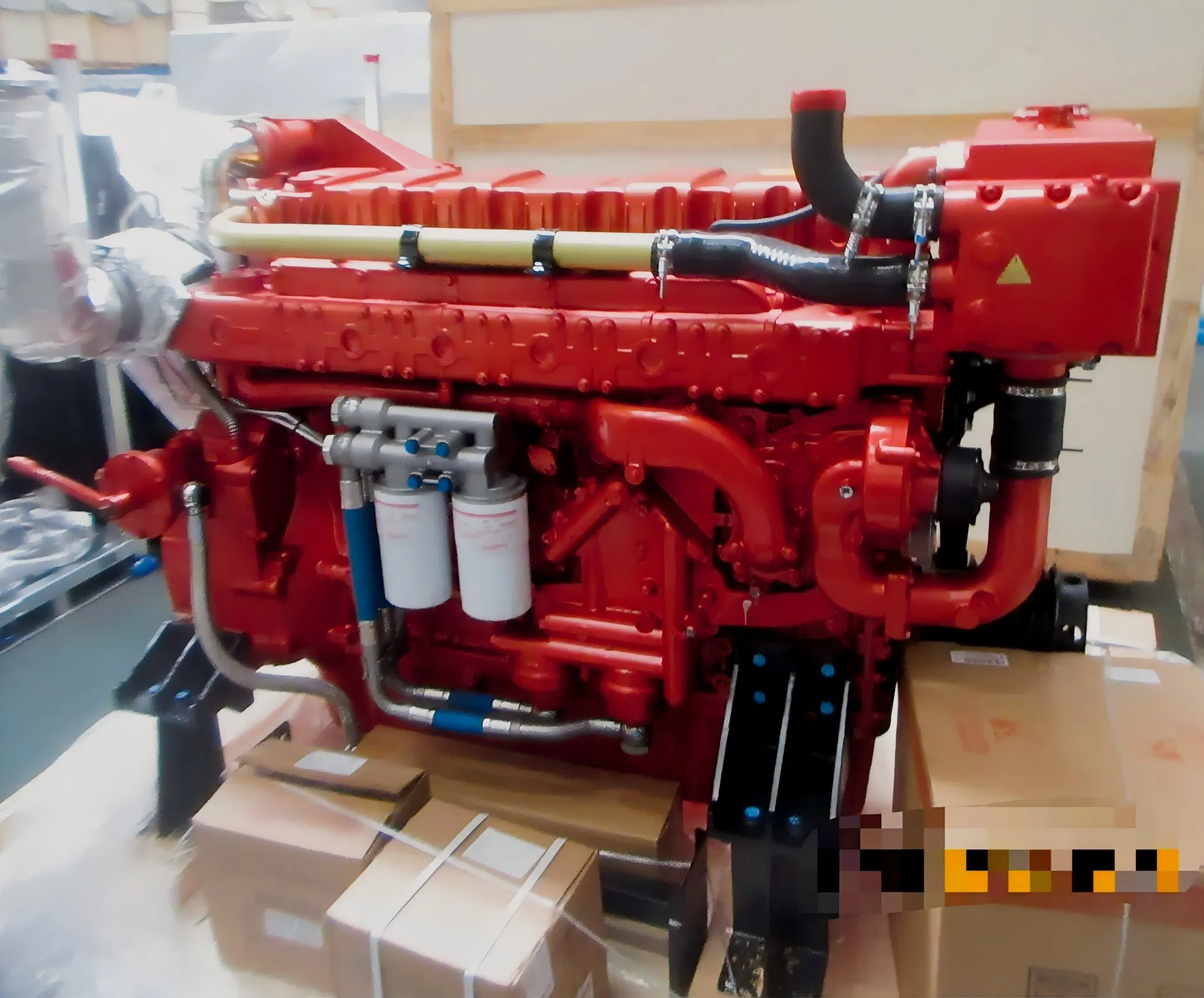

China Yuchai Yc6K560L-C20 Diesel Marine Engine, 560HP/1800rpm, Water-Cooled

China Yuchai Yc6K560L-C20 Diesel Marine Engine, 560HP/1800rpm, Water-Cooled (YC6MK Series marine diesel engine)

Customization: Available
After-sales Service: Schedule
Warranty: Schedule

Send inquiry hylicopower@126.com

Product Detail

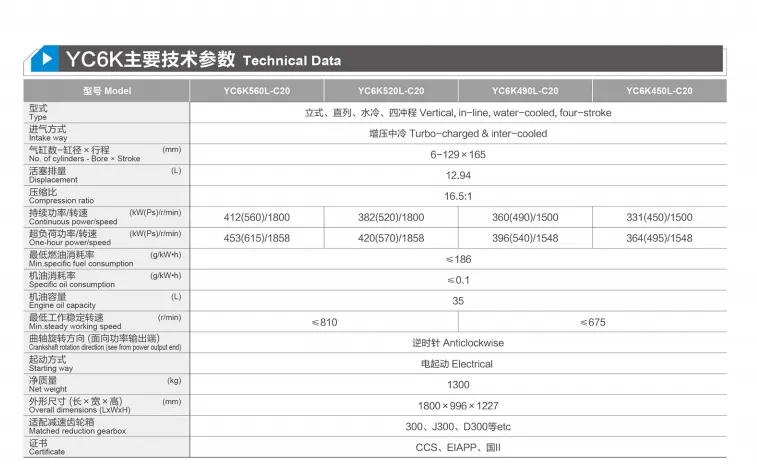

Basic Info.

Model NO.	YC6MK Series marine diesel engine	Ignition Mode	Electric Ignition
Speed	High Speed	Cooling Cylinder	Water-Cooled
Intake Pressure Impulse	Supercharged	Piston Movement	Reciprocating
Fuel	Diesel	Number of Strokes	Four-Stroke
Cylinder Arrangement Form	L	Number of Cylinders	6-Cylinder
Type	Combustion Engine	Overall Dimensions(mm)	153610211036
Engine Oil Capacity	15L	Certificates	Zc.CCS.Eiapp,China National III Emissions
Displacement	4.837	Transport Package	Export-Specific Packaging
Specification	Net weight 1200KG	Trademark	YUCHAI
Origin	China	HS Code	8408100000

Product Description

Air Inlet System

Intercooler- sea water, corrosion resistant
Air filter
Turbocharger

Exhaust System

Manifold
Water cooling exhaust pipe
Turbocharger
After turbine connecting pipe
Flexible fitting ,expansion joint

Cooling System

Thermostat
Belt -driven centrifugal water pump
Heat exchanger
Engine oil cooler

Lube System

Oil pump ,gear driven
Oil cooler
Oil filter
Oil filler
Dipstick
Crankcase breather
Oil strainer

Fuel System

Fuel filter
Oil and water separator
Fuel pump
Fuel transfer pump
Fuel metering valve
Common rail pipe

Control System

ECU
Instrumentation(Digital LCD type): engine speed and hours;

engine oil pressure and temperature; engine jacket water temperature; on/off key switch;
emergency stop button;
over speed shutdown notification lights;

Starting/ Charging System

Electronic starting motors(24V/8kW)
Charging alternator(28V/70A)

Certification

ISO Certification

Factory-designed systems built at Yuchai ISO/TS16949:2009 certified facilities

General

Crankshaft vibration damper
Crankshaft pulley
Lifting eyes
Front support leg, Rear support leg
Workshop manual
Parts Catalog
packing box for shipping
