Main Marine Engine
China Yuchai Marine Engine YC6TD600L-C20, 441kw/1500rpm/600HP
- Customization: Available
- After-sales Service: Yes
- Warranty: 12months
Main Marine Engine
Product Details
Review product information, specifications and application details, supported by HYLICO POWER product matching and export coordination.
Main Marine Engine

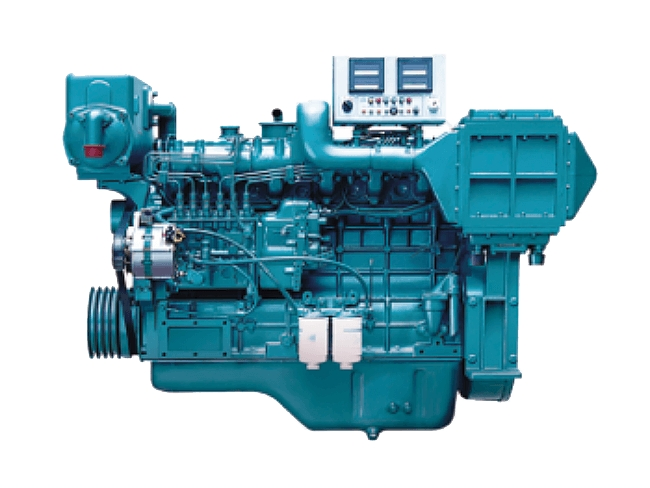

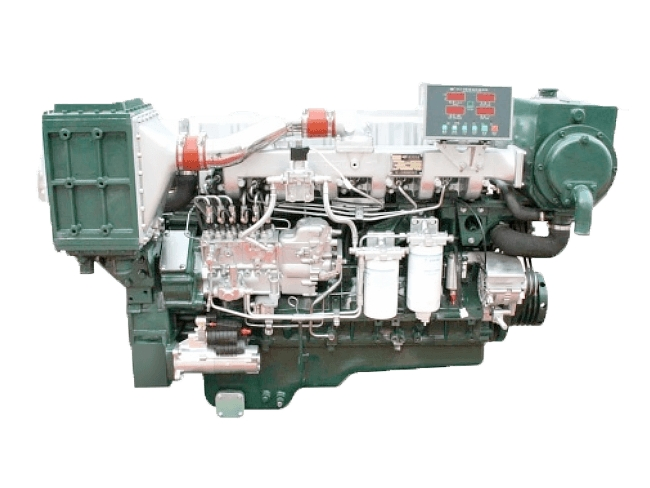

China High-Performance Yuchai Yc6t480L Marine Engine, 480HP, 352kw, 1800rpm
China High-Performance Yuchai Yc6t480L Marine Engine, 480HP, 352kw, 1800rpm (YUCHAI YC6T480L)
- Customization
- Available
- After-sales Service
- Schedule
- Warranty
- Schedule
Product Detail
Basic Info.
| Model NO. | YUCHAI YC6T480L | Ignition Mode | Electric Ignition |
| Speed | High Speed | Cooling Cylinder | Water-Cooled |
| Intake Pressure Impulse | Supercharged | Piston Movement | Reciprocating |
| Fuel | Diesel | Number of Strokes | Four-Stroke |
| Cylinder Arrangement Form | L | Number of Cylinders | 6-Cylinder |
| Type | Combustion Engine | Overall Dimensions(mm) | 2121*1093*1481 |
| Engine Oil Capacity,L | 52 | Certificates | Zc,CCS,Eiapp,I |
| Displacement | 16.35 | Transport Package | Export-Specific Packaging |
| Specification | Net weight 1980KG | Trademark | YUCHAI |
| Origin | China | HS Code | 8408100000 |
Product Description
YC6T Marine engine 380~650Ps Power CoverageAdapted Models:Mainly equipped with 250~300kW generator sets, 700~4000 tons inland water transport vessels, 20~40 meters official boats, yachts, 26~44 meters fishing boats, etc
| Technical Parameters | ||||
| Model | YC6T540C | YC6T480C | YC6T450C | YC6T490C |
| Type | Vertical, in-line, water-cooled, four-stroke | |||
| Intake way | Turbo-charged& inter-cooled | |||
| No. of cylinders - Bore × Stroke(mm) | 6-145×165 | |||
| Displacement(L) | 16.35 | |||
| Compression ratio | 15.5:1 | |||
| Continuous power/speed(kW(Ps)/r/min) | 396 | 352 | 330 | 360 |
| -540 | -480 | -450 | -490 | |
| /1800 | /1800 | /1500 | /1500 | |
| One-hour power/speed (kW(Ps)/r/min) | 435.6 | 387.2 | 363 | 396 |
| -590 | -530 | -495 | -540 | |
| /1858 | /1858 | /1500 | /1500 | |
| Min.specific fuel consumption(g/kW•h) | ≤195 | |||
| Specific oil consumption(g/kW•h) | ≤0.5 | |||
| Engine oil capacity(L) | 52 | |||
| Min.steady working speed(r/min) | ≤810 | / | ||
| Crankshaft rotation direction (see from power output end) | Anticlockwise | |||
Service support
From matching to after-sales response.
Share the model, vessel type, required power or operating conditions. HYLICO POWER will help confirm a practical configuration and the next quotation step.
Product inquiry
Send your requirement for model confirmation.
For faster matching, include the application, required power, quantity, destination and expected delivery time.
