Diesel Generator Set

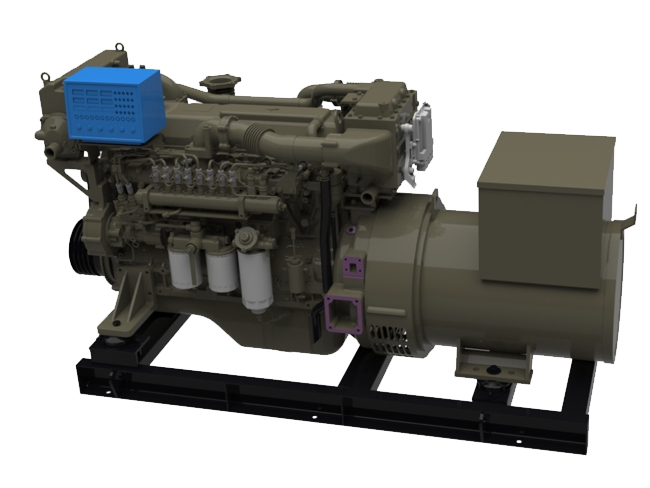

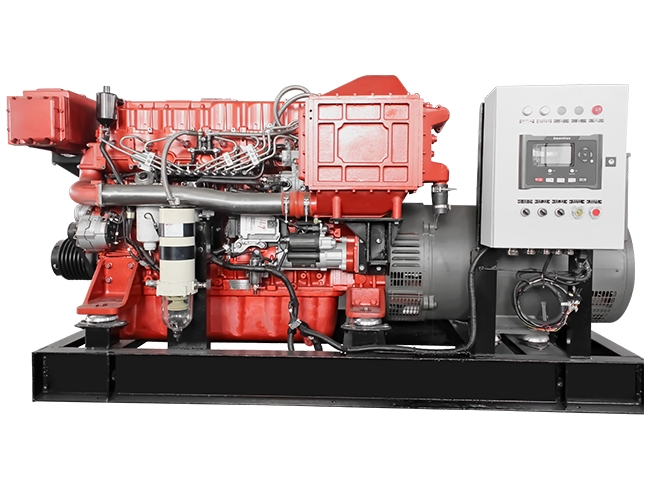

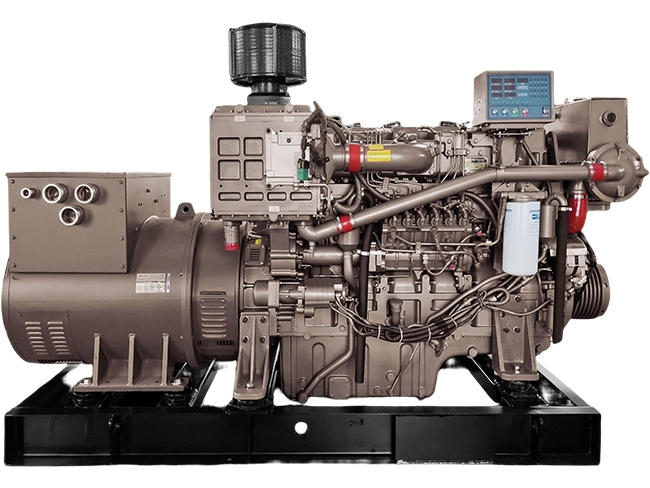

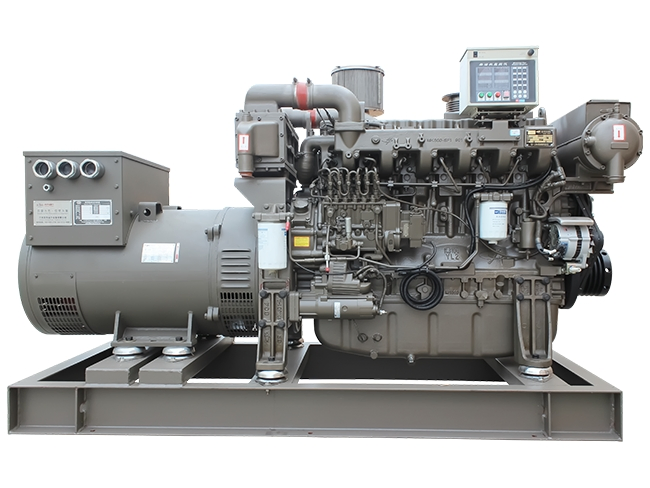

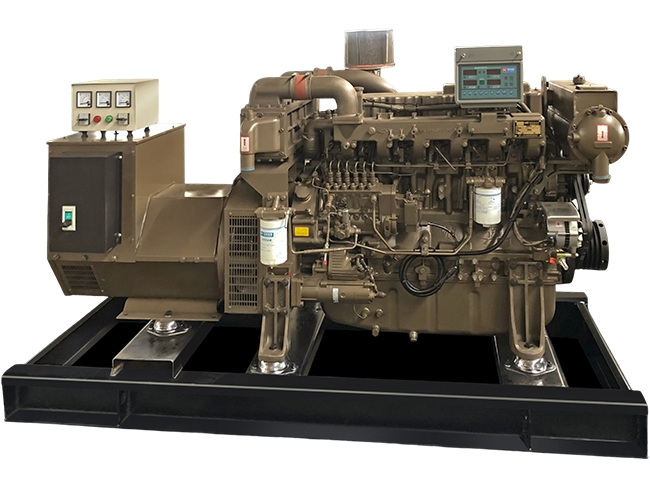

China Yuchai High-Performance Diesel Generator Set for Reliable Power Yc4a Series
China Yuchai High-Performance Diesel Generator Set for Reliable Power Yc4a Series (YC4A Marine generator series)
- Customization
- Available
- After-sales Service
- Enquiry
- Warranty
- Enquiry
Product Detail
Basic Info.
| Model NO. | YC4A Marine generator series | Ignition Mode | Electric Ignition |
| Speed | High Speed | Cooling Cylinder | Closed Circulating Water Cooling,External Circulat |
| Intake Pressure Impulse | Supercharged | Fuel | Diesel |
| Number of Strokes | Four-Stroke | Type | Electric Motor |
| Rated Speed R/Min | 1500 | Rated Power Factor(Cosφ) | 0.8(Lag) |
| Frequency | 50Hz | Power Supply Type | Three-Phase AC |
| Connection Mode of Motor Winding | Three-Phase Four-Wire | Transport Package | Export Packaging |
| Specification | 1557*; 850*; 989 | Trademark | YUCHAI |
| Origin | China | HS Code | 8502110000 |
Product Description
| Technical parameters | ||||||||||||||
| Name | Main Technical Parameters | Name | Main Technical Parameters | |||||||||||
| Genset model | CCFJ30J-W4 | CCFJ50J-W3 | CCFJ64J-W2 | Genset model | CCFJ75J-W2 | CCFJ90J-W1 | CCFJ100J-W3 | |||||||
| Power supply type | Three-phase AC | Power supply type | Three-phase AC | |||||||||||
| Rated power (kw) | 30 | 50 | 64 | Rated power (kw) | 75 | 90 | 100 | |||||||
| Rated voltage (V) | 400 | 400 | 400 | Rated voltage (V) | 400 | 400 | 400 | |||||||
| Rated current (A) | 54.1 | 62.5 | 115.5 | Rated current (A) | 135.3 | 162.4 | 180.4 | |||||||
| Rated frequency (Hz) | 50 | Rated frequency (Hz) | 50 | |||||||||||
| Rated power factor | 0.8(Lag) | Rated power factor | 0.8(Lag) | |||||||||||
| COSφ | COSφ | |||||||||||||
| Rated speed (r/min) | 1500 | Rated speed (r/min) | 1500 | |||||||||||
| Absolute value of steady-state voltage regulation (%) | ≤0.5 | Absolute value of steady-state voltage regulation (%) | ≤0.5 | |||||||||||
| steady-state voltage deviation (%) | ≤±2.5 | steady-state voltage deviation (%) | ≤±2.5 | |||||||||||
| Transient voltage deviation % | Sudden unloading 60% Rated current | ≤+20 | Transient voltage deviation % | Sudden unloading 60% Rated current | ≤+20 | |||||||||
| Sudden load 60% rated current | ≤-15 | Sudden load 60% rated current | ≤-15 | |||||||||||
| Voltage stabilization time (s) | ≤1.5 | Voltage stabilization time (s) | ≤1.5 | |||||||||||
| Sinusoidal distortion rate of voltage waveform(%) | ≤5 | Sinusoidal distortion rate of voltage waveform(%) | ≤5 | |||||||||||
| Voltage fluctuation rate (%) | ≤±1 | Voltage fluctuation rate (%) | ≤±1 | |||||||||||
| Insensitivity (%) | ≤0.5 | Insensitivity (%) | ≤0.5 | |||||||||||
| Speed fluctuation rate (%) | ≤0.5 | Speed fluctuation rate (%) | ≤0.5 | |||||||||||
| Steady-state speed regulation (%) | ≤5 | Steady-state speed regulation (%) | ≤5 | |||||||||||
| Transient speed difference(%) | Sudden load 0-50% | ≤10 | Transient speed difference(%) | Sudden load 0-50% | ≤10 | |||||||||
| Sudden load 50-100% | ≤10 | Sudden load 50-100% | ≤10 | |||||||||||
| Sudden unloading 100%-0 | ≤10 | Sudden unloading 100%-0 | ≤10 | |||||||||||
| Transient speed regulation stabilization time (s) | ≤5 | Transient speed regulation stabilization time (s) | ≤5 | |||||||||||
| Fuel consumption rate under rated conditions (g/(kW·h)) | ≤230 | Fuel consumption rate under rated conditions (g/(kW·h)) | ≤230 | |||||||||||
| Specific oil consumption (g/(kW·h)) | ≤0.35 | Specific oil consumption (g/(kW·h)) | ≤0.3 | |||||||||||
| Fuel grade | Summer: 0#, 10# light diesel of GB 19147-2016 premium grade or first grade | Fuel grade | Summer: 0#, 10# light diesel of GB 19147-2016 premium grade or first grade | |||||||||||
| Winter: 0#, -10#, -20# and -35# light diesel of GB 19147-2016 premium grade or first grade (selected based on the ambient temperature) | Winter: 0#, -10#, -20# and -35# light diesel of GB 19147-2016 premium grade or first grade (selected based on the ambient temperature) | |||||||||||||
| Oil grade | Summer: 40CF, 15W/40CF | Oil grade | Summer: 40CF, 15W/40CF | |||||||||||
| Winter: 30CD, 10W/30CD or other diesel engine oil that is not inferior to Grade CF in GB 11122-2006 and suitable for the environment | Winter: 30CD, 10W/30CD or other diesel engine oil that is not inferior to Grade CF in GB 11122-2006 and suitable for the environment | |||||||||||||
| Start mode | Electric start | Start mode | Electric start | |||||||||||
| Cooling mode | Internal circulation:Closed circulating water cooling,External circulation,Open water cooling | Cooling mod | Internal circulation:Closed circulating water cooling,External circulation,Open water cooling | |||||||||||
| Connection mode of motor winding | Three-phase four-wire | Connection mode of motor winding | Three-phase four-wire | |||||||||||
| Operating mode of genset | Continuous | Operating mode of genset | Continuous | |||||||||||
| Operating environment conditions | Ambient temperature | 45°C | Operating environment conditions | Ambient temperature | 45°C | |||||||||
| Outboard water temperature | 32°C | Outboard water temperature | 32°C | |||||||||||
| Inclination angle | Hell: 15°; roll: 22.5°; trim: 7.5°; pitch: 10° | Inclination angle | Hell: 15°; roll: 22.5°; trim: 7.5°; pitch: 10° | |||||||||||
| Temperature rise | Thermal classification A | 55°C | Temperature rise | Thermal classification A | 55°C | |||||||||
| Measurement method R | Measurement method R | |||||||||||||
| Short circuit | The alternator and its excitation system can maintain at least 3 times the rated current for at least 2s under steady-state short-circuit conditions. | Short circuit | The alternator and its excitation system can maintain at least 3 times the rated current for at least 2s under steady-state short-circuit conditions. | |||||||||||
| Overload | 50% overcurrent; 2 min | Overload | 50% overcurrent; 2 min | |||||||||||
| Fuel engine model | YC4A55Z-C22 | YC4A85Z-C22 | YC4A110L-C22 | Fuel engine model | YC4A120L-C22 | YC4A145L-C22 | YC4A165L-C22 | |||||||
| Rated power of diesel engine (kW) | 40 | 63 | 80 | Rated power of diesel engine (kW) | 90 | 106 | 120 | |||||||
| Alternator model | SB-HW4.D-30 | SB-HW4.D-50 | SB-HW4.D-64 | Alternator model | SB-HW4.D-75 | SB-HW4.D-90 | SB-HW4.D-100 | |||||||
| (SAE1-14) | (SAE1-14) | (SAE1-14) | (SAE2-11.5) | (SAE2-11.5) | (SAE2-11.5) | |||||||||
| Rated power of motor (kW) | 30 | 50 | 64 | Rated power of motor (kW) | 75 | 90 | 100 | |||||||
| Genset weight (kg) | 850 | 920 | 995 | Genset weight (kg) | 1036 | 1078 | 1103 | |||||||
| Dimension (L × W × H) mm | 1557×850×989 | 1672×850×989 | 1749×850×989 | Dimension (L × W × H) mm | 1750×865×1044 | 1848×865×1044 | 1848×865×1044 | |||||||
| Note: Dimension (L*W*H) may vary with the configuration. | ||||||||||||||
In the momentous year of 1951, a new chapter of groundbreaking innovation was written in the captivating locale of Yulin, nestled within the enchanting Guangxi Zhuang Autonomous Region. It was in this enticing setting that the esteemed Guangxi Yuchai Machinery Group Co., Ltd., fondly recognized as Yuchai Group, embarked on its transformative journey. This revered titan in investment and financial management exemplifies the zenith of capital ventures and asset stewardship. Boasting an expansive network of over 30 subsidiaries, including wholly-owned and joint-stock entities, Yuchai Group's influence is nothing short of extraordinary. Commanding assets that have ascended to an impressive CNY 41.7 billion, it proudly employs an esteemed team of approximately 16,000 skilled professionals. As a trailblazer in the internal combustion engine industry, Yuchai Group offers a diversified portfolio of products that form the bedrock of China's vast industrial landscape. Its formidable industrial prowess is strategically planted in key regions such as Guangxi, Guangdong, Jiangsu, Anhui, Shandong, Hubei, Sichuan, Chongqing, and Liaoning. With annual sales triumphantly cresting over CNY 40 billion, Yuchai Group stands unrivaled as the leader in engine sales, steadfastly preserving its prestigious and distinguished reputation.
Yuchai Group shines with remarkable distinction among China's top 500 enterprises and the manufacturing elite, proudly securing the 10th spot among the Top 100 China machinery industry companies. Its esteemed status is further enhanced by ranking 100th among China's 500 Most Valuable Brands, with an impressive brand value of CNY 57.2 billion. Renowned for its profound national company culture and significant ethical progress, Yuchai Group has been honored with the prestigious 'President's Quality Award of Guangxi Zhuang Autonomous Region' and a coveted 'Nomination for the China Quality Award.' The company's unwavering commitment to sustainability is exemplified by its continuous publication of the sustainable development report for an impressive 13 consecutive years, setting an inspiring benchmark for industry excellence and responsibility.
Yuchai Group, a radiant emblem of innovation, accelerates advancements in system, technological, and management innovation, securing its esteemed position at the industry's vanguard. The company's relentless pursuit of global innovations and strategic talent acquisition enhances its core competitiveness while strategically channeling social capital into groundbreaking enterprises. These visionary initiatives drive the evolution of three pivotal industry sectors: 'engine manufacturing and industry chain,' 'logistics and supply chain service,' and 'new energy industry (electric power and automobile) and related services.' As an industry leader in engine research, Yuchai Group consistently sets the standard by developing engines that meet the stringent China IV, V, and VI emission standards, establishing benchmarks of excellence. This pioneering role solidifies its essential contribution to the green revolution, providing environmentally conscious and economically efficient power solutions to its esteemed clientele.
Yuchai engines wield a profound global influence, reaching an astounding 180 countries and regions across Asia, Europe, America, and Africa. With its strategically located headquarters in Yulin, Guangxi Zhuang Autonomous Region, Yuchai Group adeptly extends its production bases throughout China. Furthermore, the company has established prominent joint R&D centers and marketing branches on an international scale. Consistently achieving remarkable milestones, Yuchai Group achieves impressive annual sales revenue exceeding 30 billion yuan and a remarkable engine production output of 600,000 units annually.
