Land-based diesel generator set

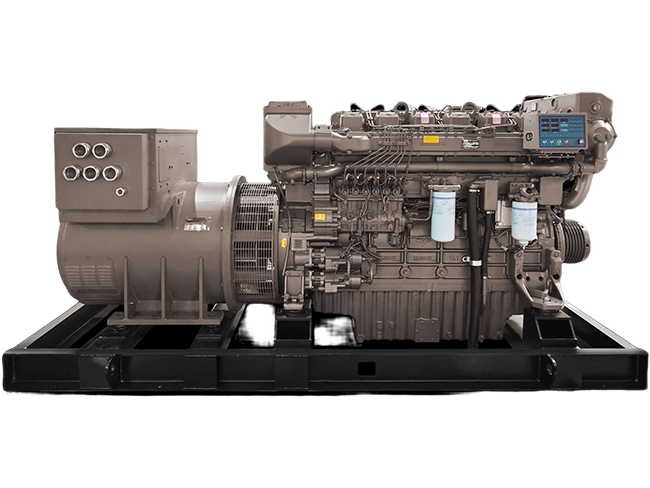

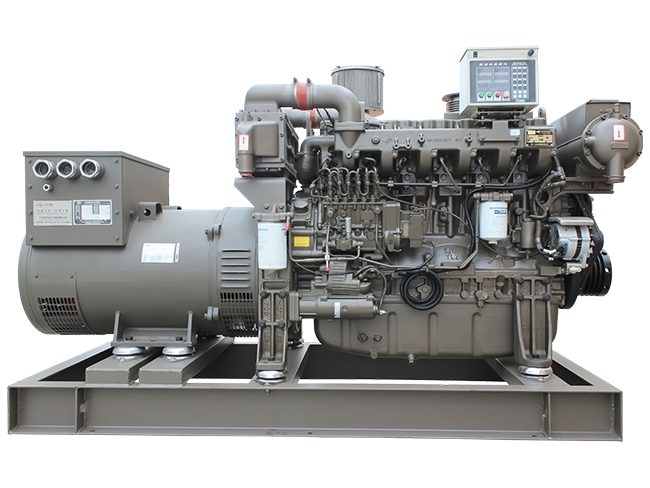

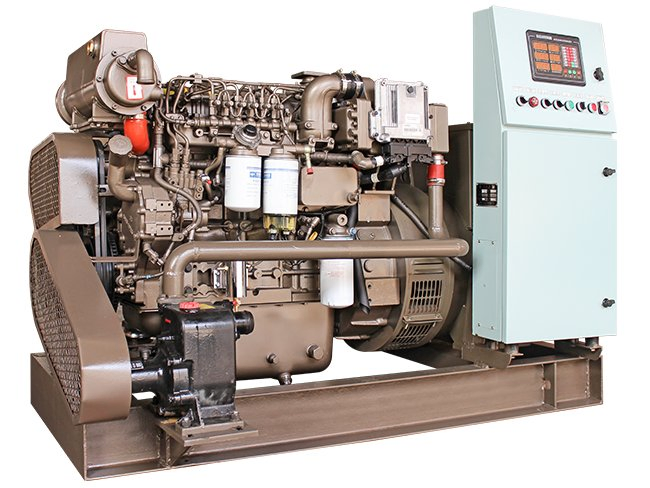

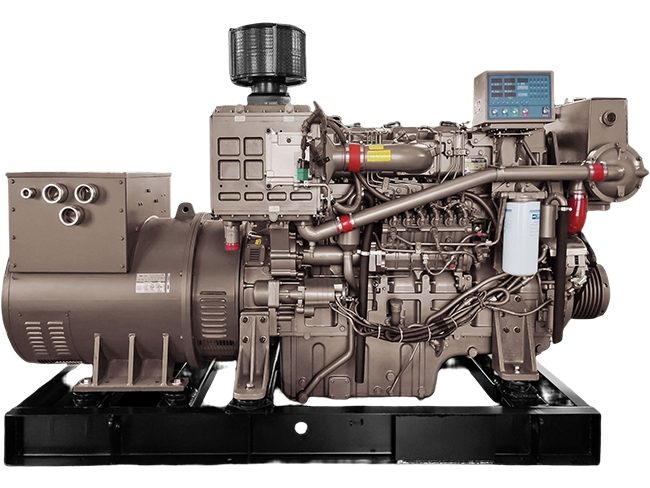

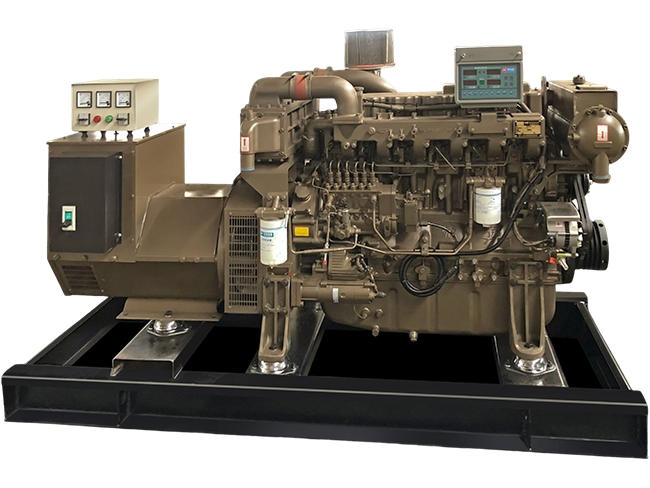

China Powerful China Yuchai Yca08 Diesel Generator for All Needs

China Powerful China Yuchai Yca08 Diesel Generator for All Needs (YCA08 Marine generator series)

Customization: Available
After-sales Service: Enquiry
Warranty: Enquiry

Send inquiry hylicopower@126.com

Product Detail

Basic Info.

Model NO.	YCA08 Marine generator series	Ignition Mode	Electric Ignition
Speed	High Speed	Cooling Cylinder	Closed Circulating Water Cooling,External Circulat
Intake Pressure Impulse	Supercharged	Fuel	Diesel
Number of Strokes	Four-Stroke	Type	Electric Motor
Rated Speed R/Min	1500	Rated Power Factor(Cosφ)	0.8(Lag)
Frequency	50Hz	Power Supply Type	Three-Phase AC
Connection Mode of Motor Winding	Three-Phase Four-Wire	Transport Package	Export Packaging
Specification	20599521112.2	Trademark	YUCHAI
Origin	China	HS Code	8502110000

Product Description

Technical parameters
Name				Main Technical Parameters
Genset model				CCFJ120J-W		CCFJ150J-W2
Power supply type				Three-phase AC
Rated power (kw				120		150
Rated voltage (V)				400		400
Rated current (A)				216.5		270.6
Rated frequency (Hz)				50
Rated power factor(COSφ)				0.8(Lag)
Rated speed (r/min)				1500
Absolute value of steady-state voltage regulation (%)				≤2.5
Absolute value of transient voltage deviation (%)		Sudden unloading 60% rated current		≤20
		Sudden load 60% rated current		≤15
Voltage stabilization time (s)				≤1.5
Absolute value of voltage fluctuation rate (%)				≤1
Transient speed difference(%)	Sudden load 0-50%			≤10
	Sudden load 50-100%			≤10
	Sudden unloading 100%-0			≤10
Transient speed regulation stabilization time (s)				≤5
Insensitivity of genset speed governing system (%)				≤0.5
Steady-state speed regulation (%)				≤5
Fuel consumption rate under rated conditions (g/(kW·h))				≤230

Speed fluctuation rate (%)				≤0.5
Specific oil consumption (g/(kW·h))				≤0.35
Fuel grade				Summer: 0#, 10# light diesel of GB 19147-2016 premium grade or first grade;
				Winter: 0#, -10#, -20# and -35# light diesel of GB 19147-2016 premium grade or first grade (selected based on the ambient temperature)
Oil grade				Summer: 40CF, 15W/40CF;
				Winter: 30CD, 10W/30CD or other diesel engine oil that is not inferior to Grade CF in GB 11122-2006 and suitable for the environment.
Start mode				Electric start
Cooling mode				Internal circulation:Closed circulating water cooling,External circulation,Open water cooling
Connection mode of motor winding				Three-phase four-wire
Operating mode of genset				Continuous
Operating environment conditions			Ambient temperature	45°C
			Outboard water temperature	32°C
			Inclination angle	Hell: 15°; roll: 22.5°; trim: 7.5°; pitch: 10°
Temperature rise			Thermal classification A	55°C
			Measurement method R
Short circuit				The alternator and its excitation system can maintain at least 3 times the rated current for at least 2s under steady-state short-circuit conditions.


Overload				50% overcurrent;2 min
Fuel engine model				YCA08200L-C22	YCA08240L-C22
Rated power of diesel engine (kW)				145	176
Alternator model				SB-HW4.D-120	SB-HW4.D-150
				(SAE1-14)	(SAE1-14)
Rated power of motor (kW)				120	150
Genset weight (kg)				1500	1600
Dimension (L × W × H) mm				2059×952×1112.2	2059×952×1112.2
Note: Dimension (LWH) may vary with the configuration.

In the landmark year of 1951, an era of groundbreaking innovation began in the enchanting setting of Yulin, located within the mesmerizing Guangxi Zhuang Autonomous Region. It was here that the illustrious Guangxi Yuchai Machinery Group Co., Ltd., affectionately known as Yuchai Group, took its first transformative steps. As a revered giant in investment and financial management, Yuchai Group represents the pinnacle of excellence in capital ventures and asset stewardship. With a spectacular network of more than 30 subsidiaries, encompassing wholly-owned and joint-stock enterprises, Yuchai Group's influence is truly extraordinary. Commanding assets that have skyrocketed to an impressive CNY 41.7 billion, it proudly employs an esteemed team of approximately 16,000 talented individuals. As a pioneering force in the internal combustion engine industry, Yuchai Group offers a diverse array of products that are foundational to China's expansive industrial framework. Its formidable industrial prowess is strategically anchored in vital regions like Guangxi, Guangdong, Jiangsu, Anhui, Shandong, Hubei, Sichuan, Chongqing, and Liaoning. With annual sales triumphantly surpassing CNY 40 billion, Yuchai Group remains unmatched as the engine sales leader, resolutely maintaining its prestigious and distinguished reputation.
Yuchai Group stands out brilliantly among China's top 500 enterprises and the manufacturing elite, proudly securing the 10th position among the Top 100 China machinery industry companies. Its prestigious status is further solidified by holding the 100th position among China's 500 Most Valuable Brands, with a brand value reaching an impressive CNY 57.2 billion. Renowned for embodying a deep national company culture and substantial ethical progress, Yuchai Group has been bestowed with the esteemed 'President's Quality Award of Guangxi Zhuang Autonomous Region' and a coveted 'Nomination for the China Quality Award.' The company's steadfast commitment to sustainability is demonstrated through its continuous publication of the sustainable development report for a remarkable 13 consecutive years, setting a visionary benchmark for industry excellence and responsibility.
Yuchai Group, a luminous beacon of innovation, propels forward advancements in system, technological, and management innovation, securing its prestigious position at the industry's forefront. The company's relentless pursuit of global innovations and strategic talent acquisition fortifies its core competitiveness while strategically channeling social capital into groundbreaking enterprises. These visionary endeavors drive the evolution of three pivotal industry sectors: 'engine manufacturing and industry chain,' 'logistics and supply chain service,' and 'new energy industry (electric power and automobile) and related services.' As a leader in engine research, Yuchai Group consistently sets the pace by introducing engines that meet the rigorous China IV, V, and VI emission standards, establishing industry benchmarks of excellence. This leadership solidifies its vital role in the green revolution, offering environmentally conscious and economically prudent power solutions to its valued clientele.
Yuchai engines exert a profound global influence, reaching an astounding 180 countries and regions across Asia, Europe, America, and Africa. With its strategically situated headquarters in Yulin, Guangxi Zhuang Autonomous Region, Yuchai Group skillfully extends its production bases throughout China. Additionally, the company has established prominent joint R&D centers and marketing branches on an international scale. Consistently achieving significant milestones, Yuchai Group surpasses an impressive annual sales revenue of more than 30 billion yuan, along with a remarkable engine production output of 600,000 units annually.
