Auxiliary Marine Engine(50HZ)
Review product information, specifications and application details, supported by HYLICO POWER product matching and export coordination.
Auxiliary Marine Engine(50HZ)

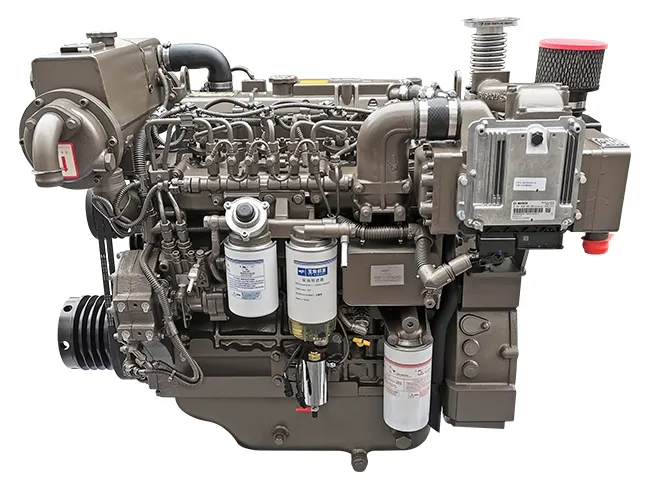

China High-Efficiency Yuchai Marine Engine for Optimal Boating Experience Reliable Yuchai Marine Engine for Enhanced Nautical Efficiency Yc4a Series (YC4A Series marine diesel engine)
| Model NO. | YC4A Series marine diesel engine | Ignition Mode | Electric Ignition |
| Speed | High Speed | Cooling Cylinder | Water-Cooled |
| Intake Pressure Impulse | Supercharged | Piston Movement | Reciprocating |
| Fuel | Diesel | Number of Strokes | Four-Stroke |
| Cylinder Arrangement Form | L | Number of Cylinders | 4-Cylinder |
| Type | Combustion Engine | Sizes | 1143mm*853mm*1120mm |
| Engine Oil Capacity | 15L | Certificates | Zc.CCS.Eiapp,China National III Emissions |
| Displacement | 4.837 | Transport Package | Export-Specific Packaging |
| Specification | Net weight 570KG | Trademark | YUCHAI |
| Origin | China | HS Code | 8408100000 |
| Technical parameters | |||||||||
| Item | YC4A Series marine diesel engine | ||||||||
| Model | YC4A220L-C20 | YC4A200L-C20 | YC4A165L-C20 | YC4A120L-C20 | YC4A140Z-C20 | YC4A120Z-C20 | YC4A100Z-C20 | YC4A70Z-C20 | YC4A55Z-C20 |
| Number of cylinders - bore × stroke (mm) | 4-108×132 | 4-108×132 | 4-108×132 | ||||||
| Displacement (L) | 4.837 | 4.837 | 4.837 | ||||||
| Number of valves per cylinder | 2 | 2 | 2 | ||||||
| Induction system | Turbocharged & intercooled | Turbocharged & intercooled | Turbocharged & intercooled | ||||||
| Rated power/speed (kW(Ps)/r/min) | 162(-220)/2300 | 147(200)/2300 | 120(165)/1800 | 90(120)/1500 | 103(140)/2300 | 90(120)/2000 | 75(100)/1800 | 53(70) /1500 | 40(55) /1500 |
| Overload power/speed (kW(Ps)/r/min) | 178.2(-240)/2374 | 161.7(-220)/2374 | 132(-180)/1858 | 99(-135)/1548 | 113.3 (-155)/2374 | 99(135)/2064 | 82.5(110)/1858 | 58.3(80) /1548 | 44(-60)/1548 |
| Min. specific fuel consumption(g/kW·h) | ≤200 | ≤200 | ≤200 | ||||||
| Certificates | ZC,CCS,EIAPP,China II | ZC,CCS,China II | ZC,CCS,China II | ZC,CCS,China II | |||||
| Diemension (L×W×H) (mm) | 570 | 570 | 570 | ||||||
| Dry weight (kg) | 1143×853×1120 | 1143×853×1120 | 1076×853×1120 | 1076×853×1120 | |||||
Service support
Share the model, vessel type, required power or operating conditions. HYLICO POWER will help confirm a practical configuration and the next quotation step.
Product inquiry
For faster matching, include the application, required power, quantity, destination and expected delivery time.
