Diesel Generator Set

Product Details

Review product information, specifications and application details, supported by HYLICO POWER product matching and export coordination.

Diesel Generator Set

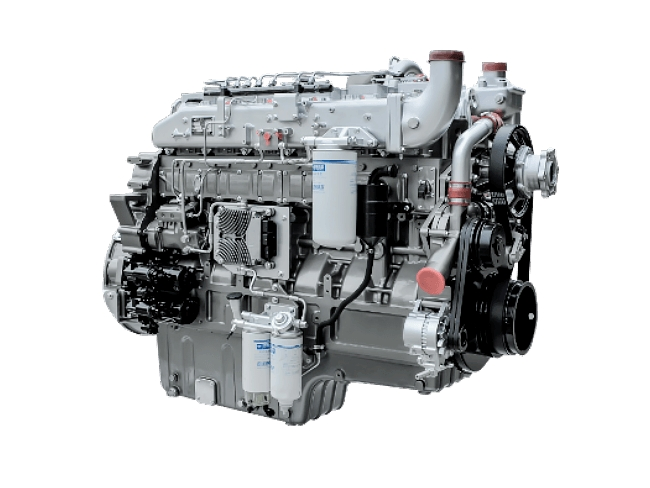

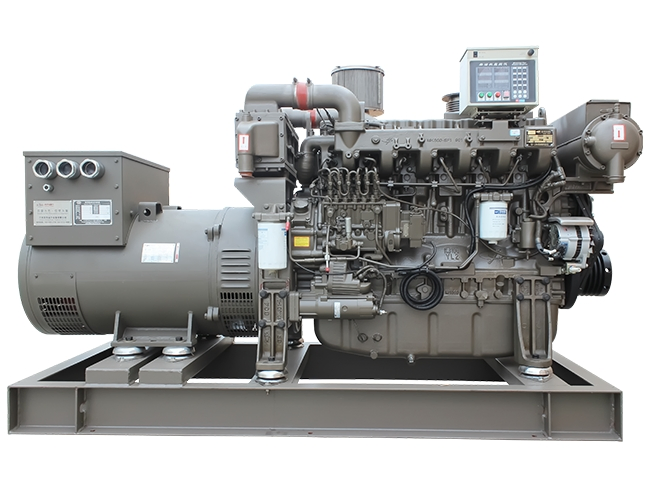

Yuchai Yc4d Diesel Generator: Ultimate Power Backup for Any Application

Yuchai Yc4d Diesel Generator: Ultimate Power Backup for Any Application (YUCHAI YC4D 37KVA-63KVA Diesel Generating Set)

Customization: Available
After-sales Service: Schedule
Warranty: Schedule

Send inquiry hylicopower@126.com

Product Detail

Basic Info.

Model NO.	YUCHAI YC4D 37KVA-63KVA Diesel Generating Set	Ignition Mode	Electric Ignition
Speed	High Speed	Cooling Cylinder	Turbocharged,Natural Aspirated
Intake Pressure Impulse	Supercharged	Piston Movement	Reciprocating
Fuel	Diesel	Number of Strokes	Four-Stroke
Cylinder Arrangement Form	L	Number of Cylinders	4-Cylinder
Type	Electric Motor	Fuel Supply	Electronic Regulation
Displacement	4.214L	Bore X Stroke	108*115 mm
Emission	No-Roadt2,Optiont3	Transport Package	Export Packaging
Specification	1800x770x1200 / 800	Trademark	YUCHAI
Origin	China	HS Code	8502110000

Product Description

Technical Parameter
Genset model		YC30GF	YC50GF
Prime power (KW/kVA)		30/37.5	50/63
Standby power (KW/kVA)		33/41.2	55/68
Rated voltage V		400/230
Rated currency A		72	90
Frequency		50
Power factor		0.8
Frequency drop %		≤2
Steady state frequency band		≤0.5
(For rated frequency) Transient frequency deviation %	100%The sudden	≤+10
	reduction power
	Sudden load power	≤-7
Recovery frequency time ( s )		≤3
Steady state voltage deviation %		≤±1
Transient voltage	100%The sudden	≤+20
deviation%	reduction power
	Sudden load power	≤-15
Voltage recovery time ( S )		≤3
Voltage unbalance degree %		≤1
Genset dimension(mm)/Weight (kg)		1800x770x1200 / 800	1900x770x1200/850
Engine	Model	YC4D60-D21	YC4D90Z-D21
	Prime power(KW)	40	60
	Standby power(KW)	44	66
	Brand/manufacture	YUCHAI
	Speed(r/min)	1500
	No. of Cylinder	4
	Cylinder arrangement	L
	Stroke	Four stroke
	Air intake mode	natural aspirated	Turbocharged
	Fuel supply	electronic regulation
	Bore x stroke	108×115 mm
	Displacement	4.214
	Emission	No-roadT2(optionT3

In the illustrious year of 1951, a vibrant era of groundbreaking innovation emerged in the picturesque locale of Yulin, nestled within the stunning Guangxi Zhuang Autonomous Region. It was here that the esteemed Guangxi Yuchai Machinery Group Co., Ltd., affectionately known as Yuchai Group, began its distinguished journey. This powerhouse of investment and financial acumen is revered as a beacon of capital ventures and asset management. With an expansive network of over 30 subsidiaries, including wholly-owned and joint-stock enterprises, Yuchai Group's influence is nothing short of extraordinary. Managing assets that soar to an awe-inspiring CNY 41.7 billion, it proudly employs around 16,000 talented professionals. As a trailblazer in the internal combustion engine sector, Yuchai Group showcases a diversified portfolio that forms the very cornerstone of China's vast industrial framework. Its formidable industrial strength is strategically positioned in key regions such as Guangxi, Guangdong, Jiangsu, Anhui, Shandong, Hubei, Sichuan, Chongqing, and Liaoning. With annual sales exceeding CNY 40 billion, Yuchai Group remains unrivaled as the leader in engine sales, consistently upholding its prestigious and esteemed reputation.
Yuchai Group proudly stands as a titan among China's top 500 enterprises and the elite of the manufacturing industry, securing the impressive 10th position among the Top 100 China machinery industry companies. Its esteemed standing is further enhanced by ranking 100th among China's 500 Most Valuable Brands, boasting a remarkable brand value of CNY 57.2 billion. Renowned for its profound national company culture and significant ethical progress, Yuchai Group has been honored with the prestigious 'President's Quality Award of Guangxi Zhuang Autonomous Region' and the coveted 'Nomination for the China Quality Award.' The company's unwavering commitment to sustainability shines brightly through its ongoing publication of the sustainable development report for an impressive 13 consecutive years, setting an inspiring benchmark for industry excellence and responsibility.
Yuchai Group stands as a radiant beacon of innovation, propelling forward with advancements in system, technological, and management innovation, securing its prestigious position at the industry's forefront. Its relentless pursuit of global innovations and strategic talent acquisition enhances its core competitiveness while expertly channeling social capital into pioneering enterprises. These visionary efforts drive the development of three crucial industry sectors: 'engine manufacturing and industry chain,' 'logistics and supply chain service,' and 'new energy industry (electric power and automobile) and related services.' As a vanguard in engine research, Yuchai Group consistently raises the bar by crafting engines that meet the stringent China IV, V, and VI emission standards, establishing benchmarks of excellence. This pioneering role reinforces its vital contribution to the green revolution, offering environmentally conscious and economically efficient power solutions to its esteemed clientele.

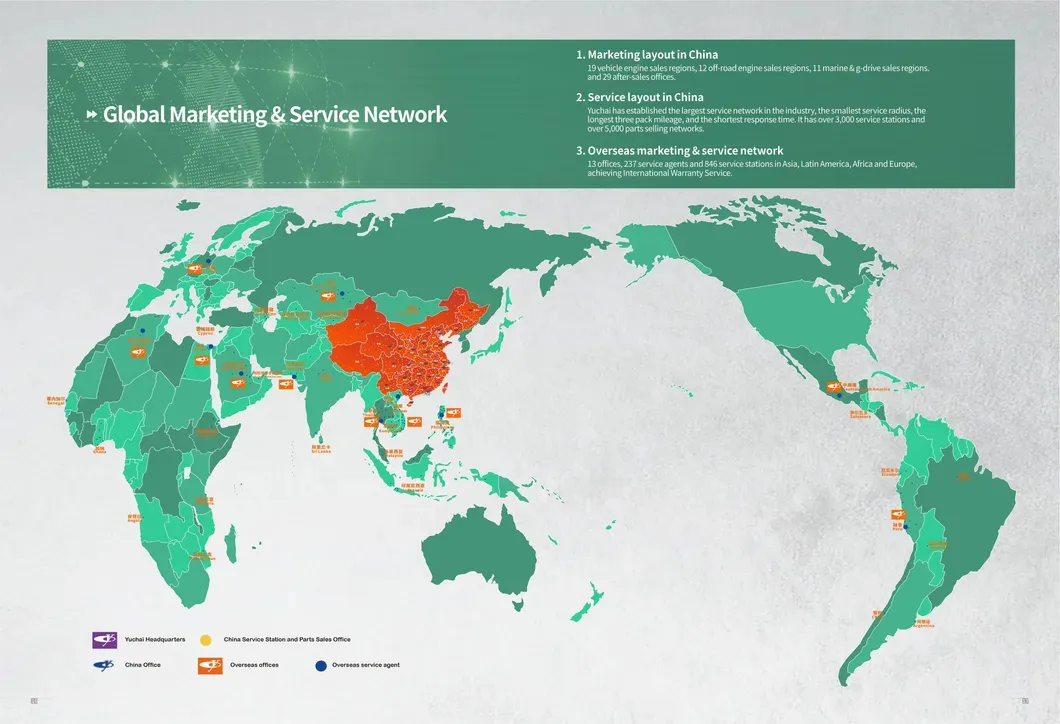

Yuchai engines command a significant global presence, extending their reach to an impressive 180 countries and regions across Asia, Europe, America, and Africa. With its strategically positioned headquarters in Yulin, Guangxi Zhuang Autonomous Region, Yuchai Group adeptly expands its production bases throughout China. Furthermore, the company has established prominent joint research and development centers and marketing branches on an international scale. Consistently achieving extraordinary milestones, Yuchai Group records remarkable annual sales revenue surpassing 30 billion yuan and an outstanding engine production output of 600,000 units annually.
