Land-based diesel generator set

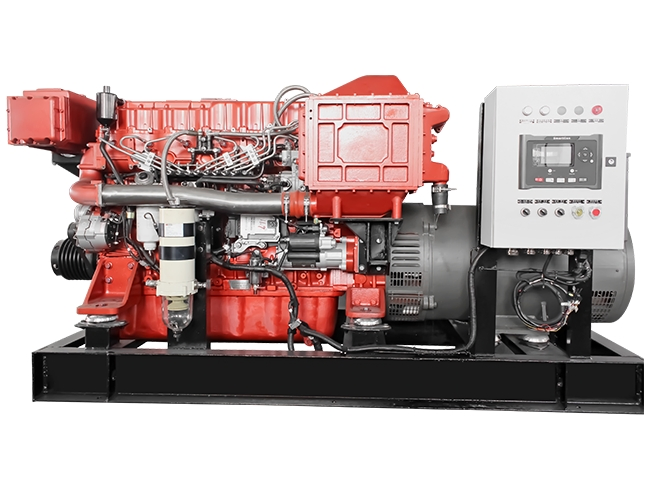

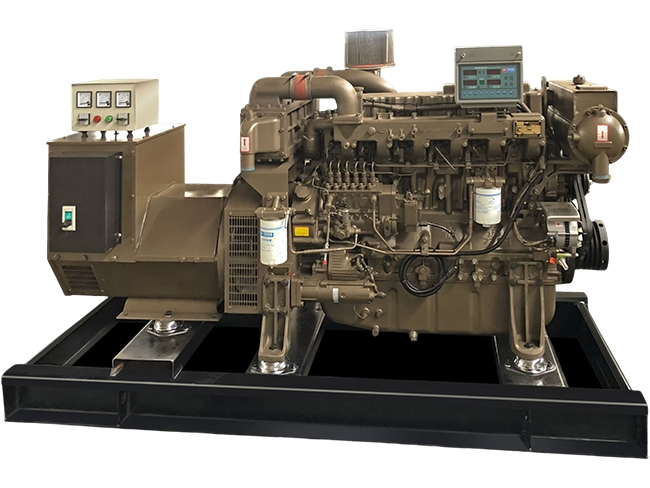

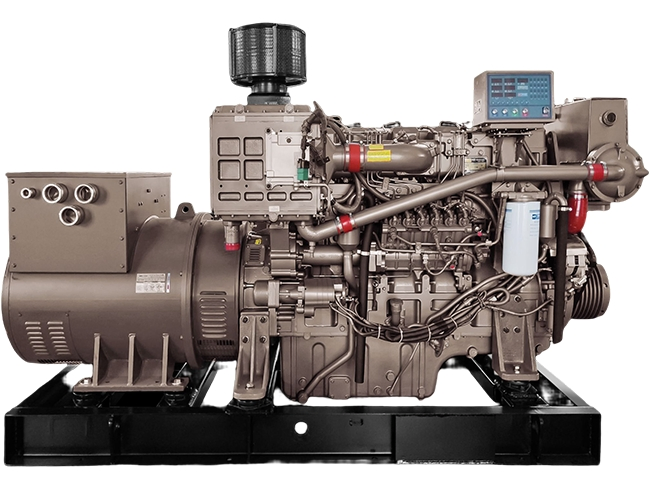

Yuchai Yc6TF Diesel Generator Set for Uninterrupted Power Supply

Yuchai Yc6TF Diesel Generator Set for Uninterrupted Power Supply (YC6TF series Yuchai Generating Set)

Customization: Available
After-sales Service: Enquiry
Warranty: Enquiry

Send inquiry hylicopower@126.com

Product Detail

Basic Info.

Model NO.	YC6TF series Yuchai Generating Set	Ignition Mode	Electric Ignition
Speed	High Speed	Cooling Cylinder	Turbocharger
Intake Pressure Impulse	Supercharged	Fuel	Diesel
Number of Strokes	Four-Stroke	Type	Electric Motor
Rated Speed R/Min	1500	Rated Power Factor(Cosφ)	0.8(Lag)
Frequency	50Hz	Power Supply Type	Three-Phase AC
Connection Mode of Motor Winding	Three-Phase Four-Wire	Transport Package	Export Packaging
Specification	327714811950	Trademark	YUCHAI
Origin	China	HS Code	8502110000

Product Description

Technical parameters
Name				Main Technical Parameters
Genset model				CCFJ450J-W		CCFJ500J-W1		CCFJ600J-W2
Power supply type				Three-phase AC
Rated power kW				450		500		600
Rated voltage V				400		400		400
Rated current A				812		902.1		1083
Rated frequency (Hz)				50
Rated power factor(COSφ)				0.8(Lag)
Rated speed r/min				1500
Absolute value of steady-state voltage regulation %				≤2.5
Absolute value of transient voltage deviation %		Sudden unloading 60% Rated current		≤20
		Sudden load 60% Rated current		≤15
Voltage stabilization time (s)				≤1.5
Absolute value of voltage fluctuation rate %				≤1
Absolute value of transient speed regulation %	Sudden load -50%			≤10
	Sudden load 50-100%
	Sudden unloading 100%-0
Transient speed regulation stabilization time s				≤5
Steady-state speed regulation %				≤5
Absolute value of speed fluctuation rate%				≤1
Insensitivity of genset speed governing system %				≤0.5
Fuel consumption rate under rated conditions (g/(kW·h))				≤230

Specific oil consumption (g/(kW·h))				≤0.3
Fuel grade				Summer: 0#, 10# light diesel of GB 19147-2016 premium grade or first grade;
				Winter: 0#, -10#, -20# and -35# light diesel of GB 19147-2016 premium grade or first grade (selected based on the ambient temperature))
Oil grade				Summer: 40CF, 15W/40CF;
				Winter: 30CD, 10W/30CD or other diesel engine oil that is not inferior to Grade CF in GB 11122-2006 and suitable for the environment.
Start mode				Electric start
Cooling mode				Internal circulation:Closed circulating water cooling,External circulation:Open water cooling
Connection mode of motor winding				Three-phase four-wire
Operating mode of genset				Continuous
Operating environment conditions			Ambient temperature	45°C
			Outboard water temperature	32°C
			Inclination angle	Hell: 15°; roll: 22.5°; trim: 7.5°; pitch: 10°
Temperature rise			Thermal classificationA	55°C

			Measurement method R
Short circuit				The alternator and its excitation system can maintain at least 3 times the rated current for at least 2s under steady-state short-circuit conditions.
Overload				50% overcurrent; 2 min
Fuel engine model				YC6TF815L-C24	YC6TF815L-C24		YC6TF980L-C22
Rated power of diesel engine (kW)				600	600		720
Alternator model				SB-HW4.D-450	SB-HW4.D-500		SB-HW4.D-600
				(SAE0-18)	(SAE0-18)		(SAE0-18)
Rated power of motor (kW)				450	500		600
Genset weight (kg)				5230	5355		5930
Diemension(Length × width × height) mm				3277×1481×1950	3277×1481×1950		3464×1481×1950
Note: Dimension (LWH) may vary with the configuration.

Established in the illustrious year of 1951, the renowned Guangxi Yuchai Machinery Group Co., Ltd., affectionately known as Yuchai Group, stands as a cornerstone of strength in the vibrant city of Yulin, nestled within the enchanting Guangxi Zhuang Autonomous Region. As a titan in investment and finance management, the Yuchai Group epitomizes the zenith of capital operation and asset management excellence. This monumental state-owned enterprise exerts a commanding presence with a sophisticated network of over 30 subsidiaries, encompassing both fully-owned and joint-stock ventures. With assets soaring to an extraordinary CNY 41.7 billion, it is fortified by a passionate workforce of approximately 16,000 dedicated individuals. A pioneering force in the internal combustion engine manufacturing domain, Yuchai Group boasts a vast array of products that traverse the expansive terrain of China's industrial landscape. Its strategically positioned industrial footprint is deeply rooted in influential regions such as Guangxi, Guangdong, Jiangsu, Anhui, Shandong, Hubei, Sichuan, Chongqing, and Liaoning. With annual sales triumphantly surpassing CNY 40 billion, Yuchai Group consistently upholds its status as the unrivaled leader in engine sales, year after year.
Yuchai Group shines as a distinguished beacon among China's top 500 enterprises and manufacturing titans, proudly securing its esteemed position as 10th among the Top 100 China machinery industry companies. Furthermore, it holds a commendable rank of 100th among China's 500 Most Valuable Brands, with an awe-inspiring brand value reaching beyond CNY 57.2 billion. Revered as a paragon of national company culture and ethical progression, Yuchai Group's accolades include the prestigious 'President's Quality Award of Guangxi Zhuang Autonomous Region' and a coveted 'Nomination for the China Quality Award.' The company showcases its steadfast dedication to sustainable practices by consistently publishing its sustainable development report for an impressive 13 consecutive years, embodying a visionary ethos that sets an unparalleled benchmark for excellence.
Embracing the power of innovation, Yuchai Group shines as a luminary in system, technological, and management innovation, ensuring it remains at the forefront of industry advancements. The company amplifies its commitment to global innovations and talent acquisition, reinforcing its core competitiveness while channeling social capital into visionary ventures. These groundbreaking initiatives propel the evolution of three principal industry sectors: 'engine manufacturing and industry chain,' 'logistics and supply chain service,' and 'new energy industry (electric power and automobile) and related services.' As a trailblazer in engine research, Yuchai Group has consistently led the charge, launching engines that meet China IV, V, and VI emission standards, establishing an industry benchmark. This leadership role solidifies its pivotal position in the green revolution, delivering eco-friendly and cost-effective power solutions to its cherished clientele.

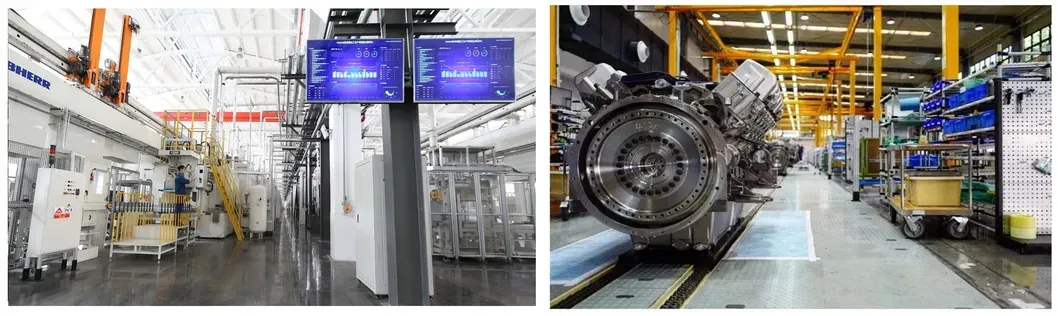

Yuchai engines proudly leave their mark worldwide, reaching an impressive 180 countries and regions across Asia, Europe, America, and Africa. With its headquarters strategically positioned in Yulin, Guangxi Zhuang Autonomous Region, Yuchai Group adeptly distributes its production bases throughout China. Furthermore, the company has established significant joint R&D centers and marketing branches on an international scale. Demonstrating remarkable achievements, Yuchai Group consistently attains an exceptional annual sales revenue exceeding 30 billion yuan, coupled with an outstanding engine output of 600,000 sets each year.
