Land-based diesel generator set

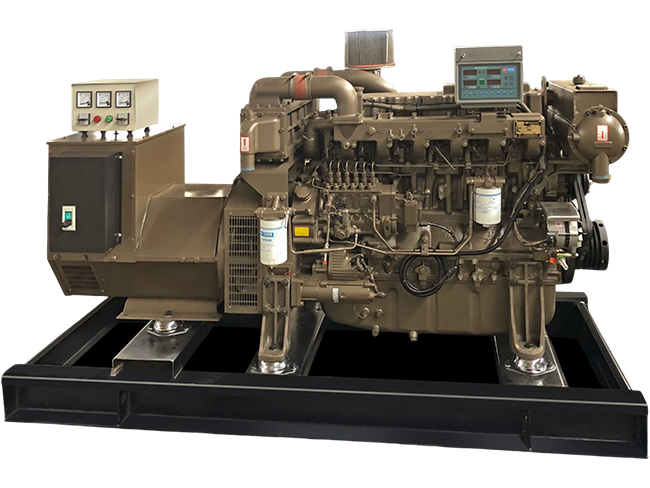

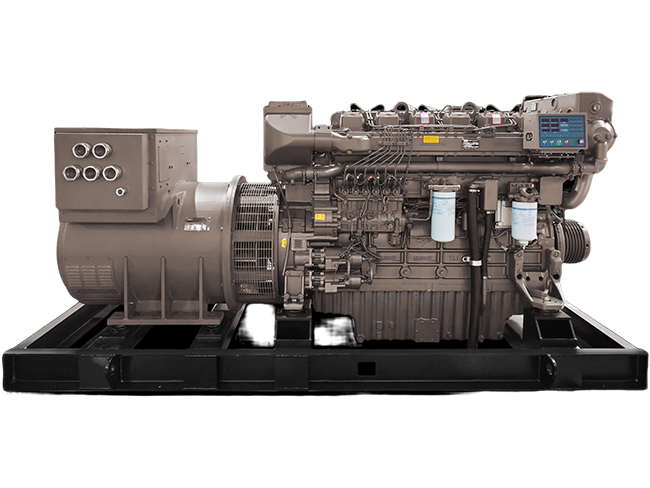

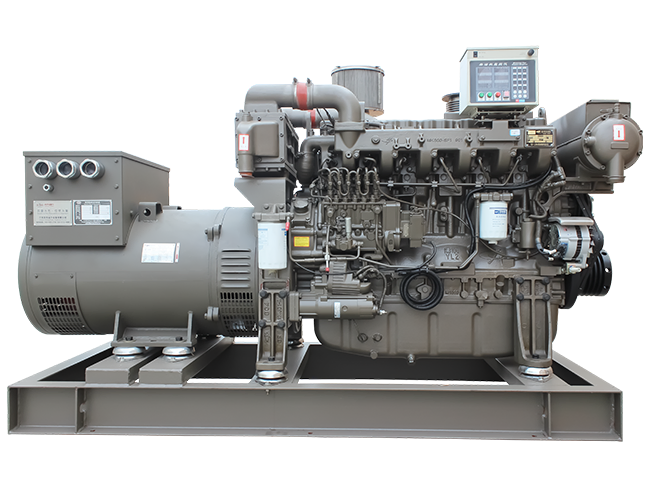

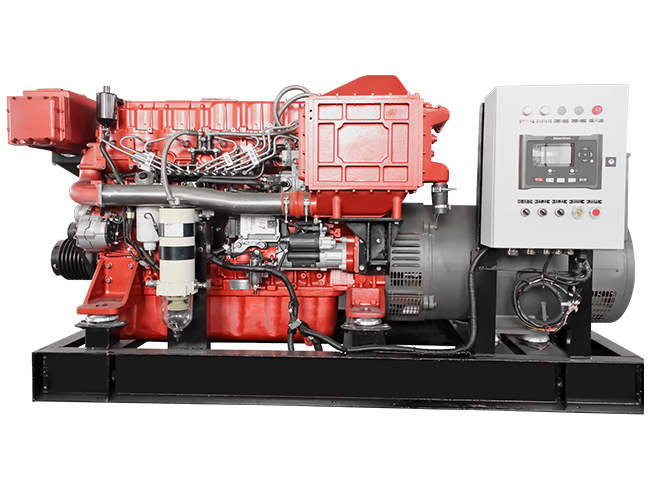

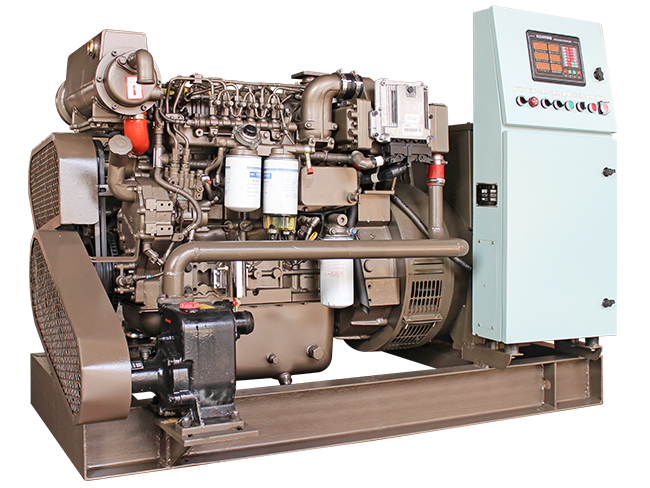

China Reliable Yuchai Diesel Generating Set with High-Efficiency Performance Yc6K Series

Product Description Technical parameters Name Main Technical Parameters Genset model CCFJ300J-W Power supply type Three-phase AC Rated power kW 300 Rated voltage V 400 Rated current A 541.3 Rated frequency (Hz) 50 Rated power factor(COSφ) 0

Send inquiry hylicopower@126.com

Product Detail

Product Description

Technical parameters
Name				Main Technical Parameters
Genset model				CCFJ300J-W
Power supply type				Three-phase AC
Rated power kW				300
Rated voltage V				400
Rated current A				541.3
Rated frequency (Hz)				50
Rated power factor(COSφ)				0.8(Lag)
Rated speed r/min				1500
Absolute value of steady-state voltage regulation %				≤2.5
Absolute value of transient voltage deviation (%)		Sudden unloading60% Rated current		≤20
		Sudden load60%Rated current		≤15
Voltage stabilization time (s)				≤1.5
Absolute value of voltage fluctuation rate %				≤1
Absolute value of transient speed regulation %	Sudden load0-50%			≤10
	Sudden load50-100%
	Sudden unloading100%-0
Transient speed regulation stabilization time s				≤5
Steady-state speed regulation %				≤5
Absolute value of speed fluctuation rate%				≤0.5
Insensitivity of genset speed governing system %				≤0.5
Fuel consumption rate under rated conditions (g/(kW·h))				≤205

Specific oil consumption g/(kW·h)				≤0.1
Fuel grade				Summer: 0#, 10# light diesel of GB 19147-2016 premium grade or first grade;;
				Winter: 0#, -10#, -20# and -35# light diesel of GB 19147-2016 premium grade or first grade (selected based on the ambient temperature))
Oil grade				Summer: 40CF, 15W/40CF;
				Winter: 30CD, 10W/30CD or other diesel engine oil that is not inferior to Grade CF in GB 11122-2006 and suitable for the environment.
Start mode				Electric start
Cooling mode				Internal circulation:Closed circulating water cooling,External circulation:Open water cooling
Connection mode of motor winding				Three-phase four-wire
Operating mode of genset				Continuous
Operating environment conditions			Ambient temperature	45°C
			Outboard water temperature	32°C
			Inclination angle	Hell: 15°; roll: 22.5°; trim: 7.5°; pitch: 10°
Temperature rise			Thermal classificationA	55°C
			Measurement method R
Short circuit				The alternator and its excitation system can maintain at least 3 times the rated current for at least 2s under steady-state short-circuit conditions.
Overload				50% overcurrent; 2 min
Fuel engine model				YC6K490L-C20
Rated power of diesel engine (kW)				360
Alternator model				SB-HW4.D-300
				(SAE1-14)
Rated power of motor (kW)				300
Genset weight (kg)				2600
Diemension(Length × width × height) mm				2540×1170×1350
Note: Dimension (LWH) may vary with the configuration.

In the illustrious year of 1951, a new era dawned in the enchanting city of Yulin, nestled in the mesmerizing Guangxi Zhuang Autonomous Region. Here, the prestigious Guangxi Yuchai Machinery Group Co., Ltd., fondly known as Yuchai Group, was established, marking a transformative chapter in investment and finance management. As a paragon of excellence in capital operation and asset management, Yuchai Group has created an awe-inspiring network comprising over 30 subsidiaries, including wholly-owned and joint-stock ventures. This vast network underscores its formidable influence. With assets valued at a staggering CNY 41.7 billion, the company stands as a beacon of opportunity for approximately 16,000 dedicated professionals. As a pioneer in internal combustion engine manufacturing, Yuchai Group's diverse product range permeates the expansive industrial landscape of China, with its industrial might deeply rooted in strategic regions such as Guangxi, Guangdong, Jiangsu, Anhui, Shandong, Hubei, Sichuan, Chongqing, and Liaoning. With annual sales triumphantly soaring beyond CNY 40 billion, Yuchai Group proudly holds its position as the unmatched leader in engine sales, consistently maintaining its eminent status.
Yuchai Group stands out as a luminous star among China's top 500 enterprises and manufacturing titans, securing the prestigious 10th spot among the Top 100 China machinery industry companies. Furthermore, it proudly holds the esteemed position of 100th among China's 500 Most Valuable Brands, with its brand value reaching an extraordinary CNY 57.2 billion. Celebrated for its profound national company culture and ethical progress, Yuchai Group has been honored with the 'President's Quality Award of Guangxi Zhuang Autonomous Region' and a coveted 'Nomination for the China Quality Award.' The company's unwavering commitment to sustainable practices is exemplified by its consistent publication of the sustainable development report for an impressive 13 years, setting a visionary benchmark for industry excellence.
Yuchai Group, a shining example of innovation, spearheads advancements in system, technological, and management innovation, securing its place at the forefront of the industry. The company's dedication to global innovation and talent acquisition significantly bolsters its core competitiveness, while strategically channeling social capital into groundbreaking enterprises. These pioneering efforts drive the evolution of three pivotal industry sectors: 'engine manufacturing and industry chain,' 'logistics and supply chain service,' and 'new energy industry (electric power and automobile) and related services.' Leading the charge in engine research, Yuchai Group consistently sets new standards by launching engines compliant with China IV, V, and VI emission regulations, setting the bar for industry excellence. This leadership cements its essential role in the green revolution, offering eco-friendly and cost-effective power solutions to its esteemed clients.
Yuchai engines leave an indelible mark on the global stage, reaching a remarkable 180 countries and regions across Asia, Europe, America, and Africa. With its strategically positioned headquarters in Yulin, Guangxi Zhuang Autonomous Region, Yuchai Group masterfully distributes its production bases throughout China. Moreover, the company has established significant joint R&D centers and marketing branches on an international scale. Achieving outstanding milestones, Yuchai Group consistently surpasses an impressive annual sales revenue of over 30 billion yuan, accompanied by a remarkable engine output of 600,000 sets annually.
