Main Marine Engine

Product Details

Review product information, specifications and application details, supported by HYLICO POWER product matching and export coordination.

Main Marine Engine

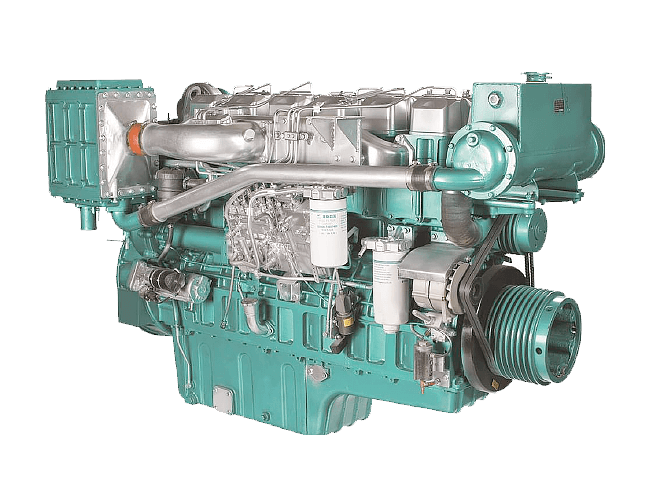

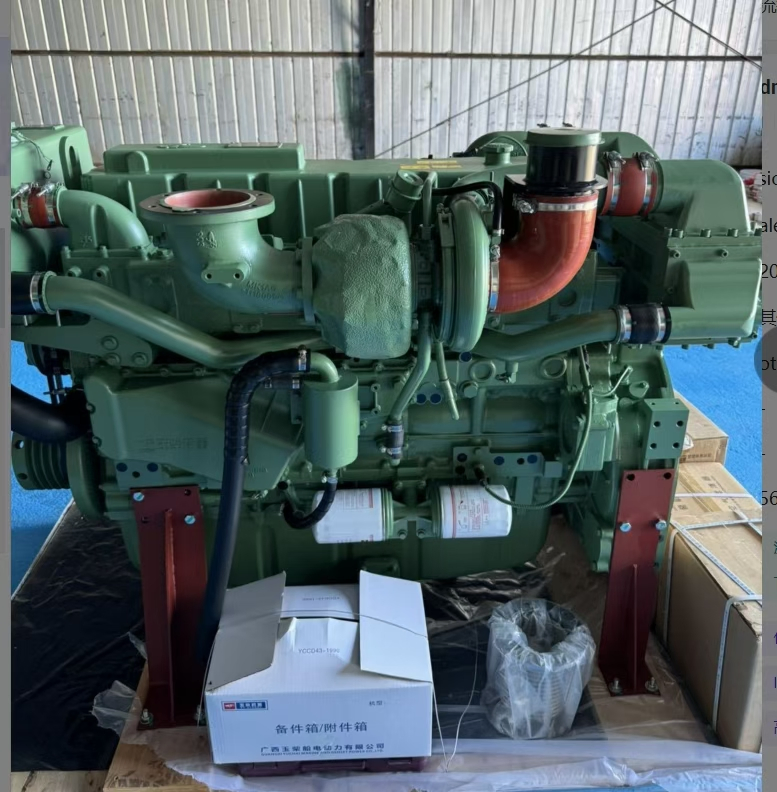

YC6MJ410L-C20 ,410HP, 300kw, 1800rpm, Reliable Yuchai Marine Diesel Engines for Boats and Marine Vessels

YC6MJ410L-C20 410HP, 300kw, 1800rpm, Reliable Yuchai Marine Diesel Engines for Boats and Marine Vessels,Mechanical fuel injection pump

Customization: Available
After-sales Service: Schedule
Warranty: Schedule

Send inquiry hylicopower@126.com

Product Detail

Basic Info.

Model NO.	YUCHAI YC6MJ410L-C20	Ignition Mode	Electric Ignition
Speed	High Speed	Cooling Cylinder	Water-Cooled
Intake Pressure Impulse	Supercharged	Piston Movement	Reciprocating
Fuel	Diesel	Number of Strokes	Four-Stroke
Cylinder Arrangement Form	L	Number of Cylinders	6-Cylinder
Type	Combustion Engine	Overall Dimensions(mm)	183410281278
Number of Valves Per Cylinder	4	Certificates	Zc,CCS,Eiapp,I
Displacement	11.3	Transport Package	Export-Specific Packaging
Specification	1200KG	Trademark	YUCHAI
Origin	China	Governor	Mechanical

Product Description

YC6MJMarine engine365-450Ps Power Coverage
Adapted Models:Perfectly suited for 800~1600 tons of inland river transport vessels, this robust engine is also ideal for 18~28m fishing boats, versatile enough for 15~20m official boats, and offers seamless power for 15~30m cruise ships, positioning it as a prime choice for a wide array of maritime applications.

Technical Parameters
Model	YC6MJ365L-C20	YC6MJ410L-C20	YC6MJ450L-C20
Number of cylinders-Bore × Stroke(mm)	6×131×145
DisplacementL	11.73
Number of valves per cylinder	4
Intake way	Turbo-charged& inter-cooled
Continuous power /speed(kW(Ps)/r/min)	267(365)/1500	300(410)/1800	330(450)/2100
One-hour power/speed(kW(Ps)/r/min)	293.7(400)/1548	330(450)/1858	363(495)/2168
Min. specific fuel consumption(g/kW.h)	≤198
Certificate	ZC,CCS,EIAPP,I
Overall dimensions (LxWxH)(mm)	1834×1028×1278
Net mass(kg)	1200

Service support

From matching to after-sales response.

Share the model, vessel type, required power or operating conditions. HYLICO POWER will help confirm a practical configuration and the next quotation step.
